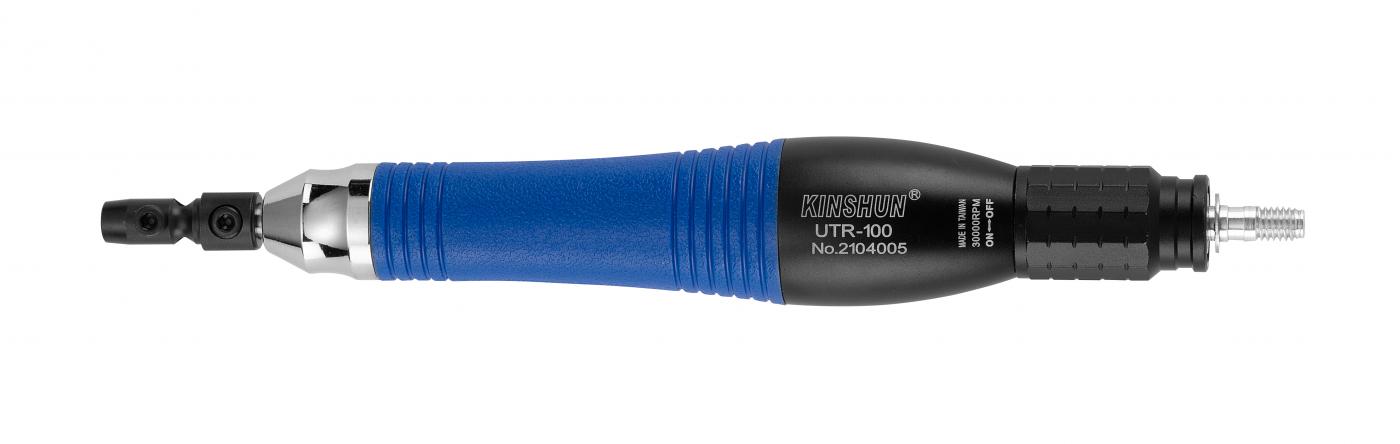

UTR-100
UTR-100
Medium Grinding (For Reciprocating Grinding)
- Reciprocating Stroke:1.0MM-↹
- Free Speed:30000 rpm
- Net weight of machine body: 190g
- Collet:○=3mm(1/8”) □=0.5~3mmx4~10mm
- Net Weight( Reciprocating Grinding +Tube ):0.283Kg
- Packaging (+Accessory Kit Weight )(1pcs):0.565kg
- Length:205mm
- Tool Dimension:30mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption: 0.04 m3/min (1.41CFM-40 L/min)
- Air Inlet:1/4”
- Exhaust System: Before .Rear
- Hose Length:1300mm(Tube inner diameter 5mm)
- Switch:Switch fine-tuning. Roll Type Throttle.
- Packing:20 pcs/1.69cu-ft/G.W.:12.5kgs (44.5 CM*42 CM*27 CM)

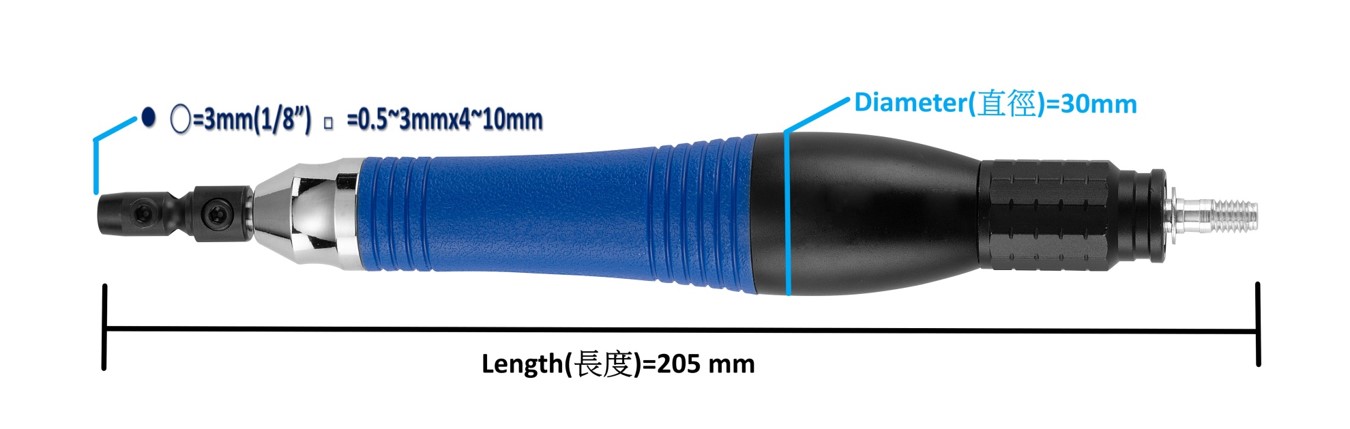

UTR-100-Size marking chart
UTR-100 STANDARD ACCESSORY
- Spanner (L) 2.5mm x1pcs
- Axis X1pcs
- Square colletX1pcs
UTR-100 Material
- Shell:Zinc. Aluminum. Plastic alloy.
- Gear: copper
- Bearing:2pcs
- Linear Bearings:1 pcs
- Spindle Heart:1 pcs
UTR-100 Features
- Good grinding power.
- Spindle core grinding. After heat treatment, solve the problem of insufficient stroke caused by spindle retraction during grinding. Accelerate grinding efficiency.

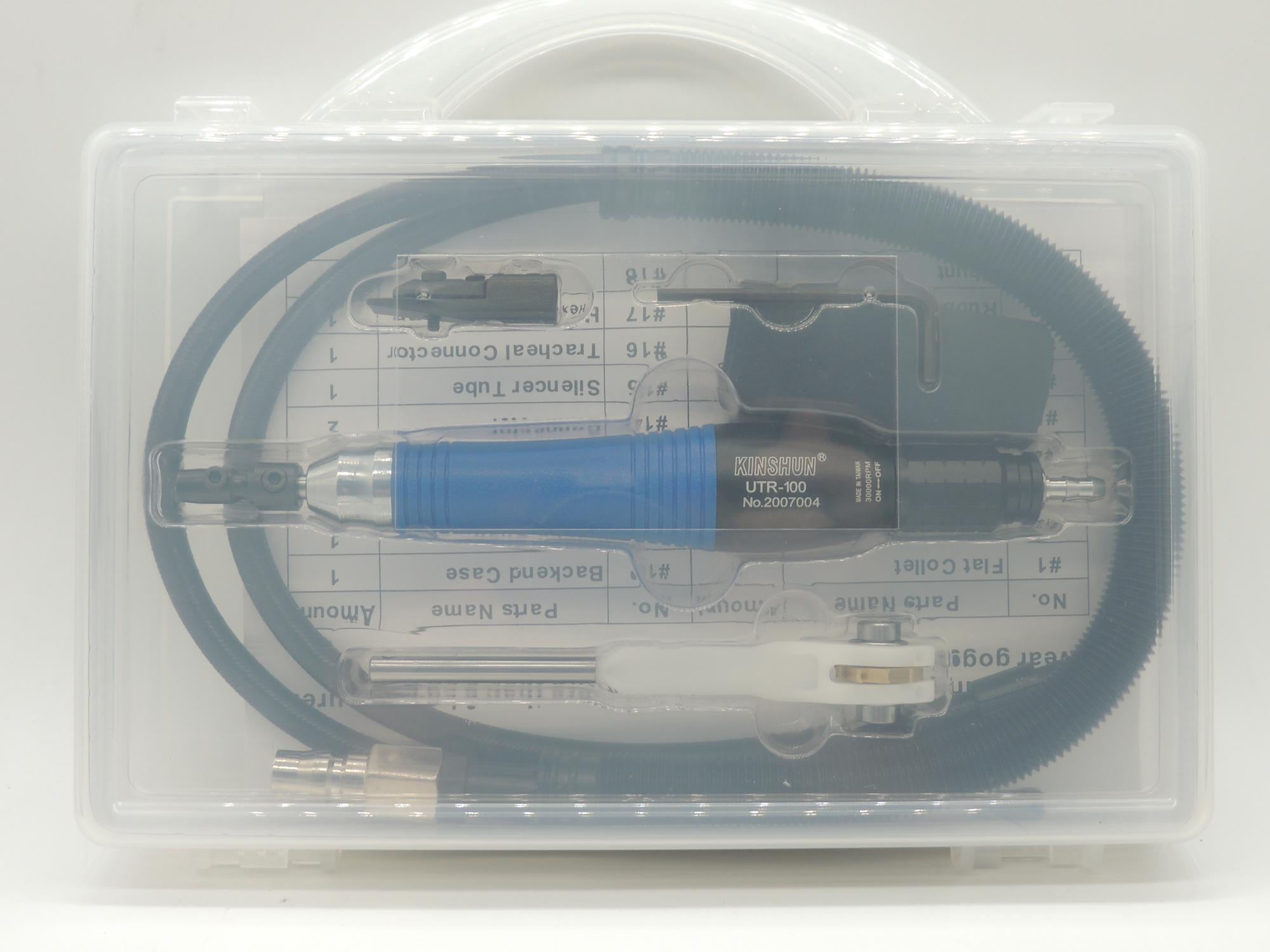

UTR-100-Package
