95゜Inner Diameter Grinding(Narrow Space Use)

• Free Speed：52500 rpm
• Without muffler tube:93dba
• Collet：3.0mm(1/8”) - Replacement
• Sound Pressure:88 dba
• Net Weight(Micro Air Grinder +Tube )：0.22Kg
• Packaging (+Accessory Kit Weight )(1pcs)：0.492kg
• Length：139mm
• Net weight of machine body: 119g
• Tool Dimension：17mm
• Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
• Air Consumption：0.21 m3/min(7.4CFM-210L/min)
• Air Inlet：1/4”
• Exhaust System：Before .Rear
• Hose Length：1300mm(Tube inner diameter 5mm)
• Switch：Switch fine-tuning.  Roll Type Throttle.
• Packing：20 pcs /1.69cu-ft/G.W.:12kgs (44.5 CM*42 CM*27 CM)

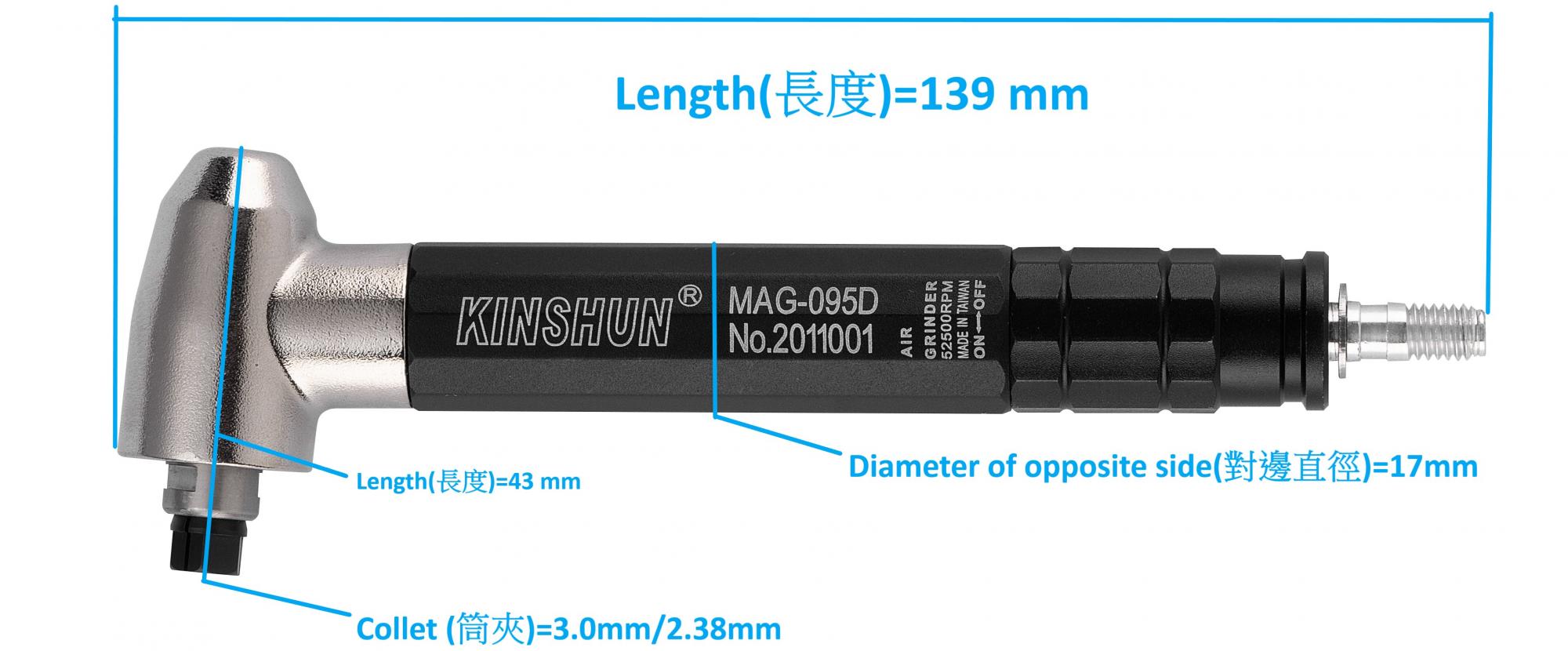

MAG-095D-Size marking chart

MAG-095D STANDARD ACCESSORY

• Spanner (9x9mm) x2pcs
• Oil Can x1pcs
• Grinding wheel with handle 3mm (8x14) x2pcs

MAG-095D Material

• Shell：Zinc aluminum alloy
• Cylinder：SCM420 Alloy steel
• Gear：20CrMnTi
• Rotor：Stainless steel
• Blade：3pcs
• Bearing：3pcs
• Bearing Housing：Copper
• Splitter： aluminum alloy
• Collet：Steel

MAG-095D Features

• Mute high torque.
• 95degree angle to reduce wrist fatigue .
• Small gear sound. High precision. High torque.
• Longer lifetime and lower vibration.

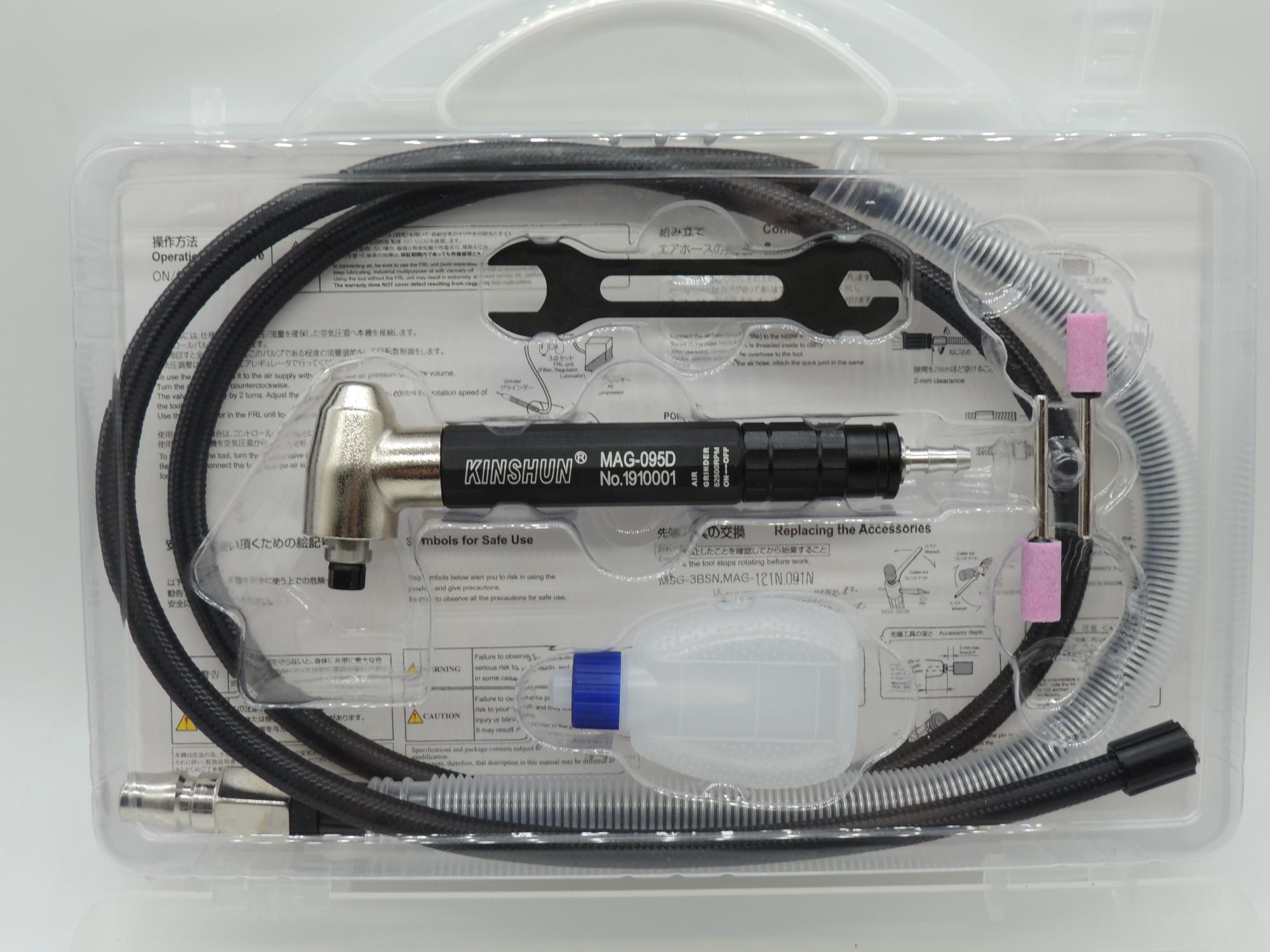

MAG-095D-Package
