120゜(45゜) Surface Grinder

• Free Speed：23500 rpm
• Without muffler tube:93dba
• Chassis：30MM - Replacement
• Sound Pressure:88 dba
• Net Weight(Micro Air Grinder +Tube )：0.26Kg
• Net weight of machine body: 165g
• Packaging (+Accessory Kit Weight )(1pcs)：0.52kg
• Length：155mm
• Tool Dimension：17mm
• Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
• Air Consumption：0.21 m3/min(7.4CFM-210L/min)
• Air Inlet：1/4”
• Exhaust System： Before .Rear
• Hose Length：1300mm(Tube inner diameter 5mm)
• Switch：Switch fine-tuning. Roll Type Throttle.
• Packing：20 pcs /1.69cu-ft/G.W.:12kgs (44.5 CM*42 CM*27 CM)

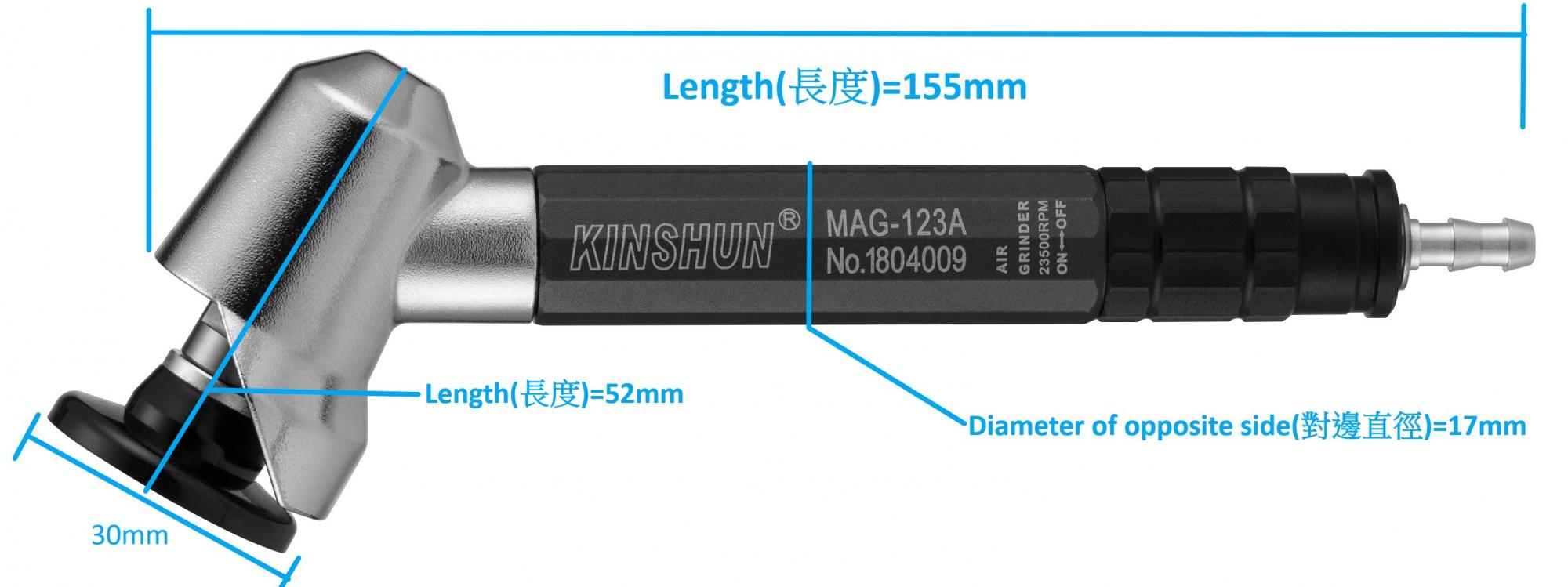

MAG-123A-Size marking chart

MAG-123A STANDARD ACCESSORY

• Spanner (9x9mm) x1pcs
• Oil Can  x1pcs
• Self-adhesive round sandpaper 30MMx5pcs
• Bowl type grinding wheel 30mm*1pcs

MAG-123A Material

• Shell：Zinc aluminum alloy
• Cylinder：SCM420 Alloy steel
• Gear：20CrMnTi
• Rotor：Stainless steel
• Blade：3pcs
• Bearing：3pcs
• Bearing housing：Copper
• Splitter：aluminum alloy
• Chassis：Rubber aluminum alloy

MAG-123A Features

• Mute high torque.
• 120 degree angle to reduce wrist fatigue .
• Small gear sound. High precision.  High torque.
• Longer lifetime and lower vibration.

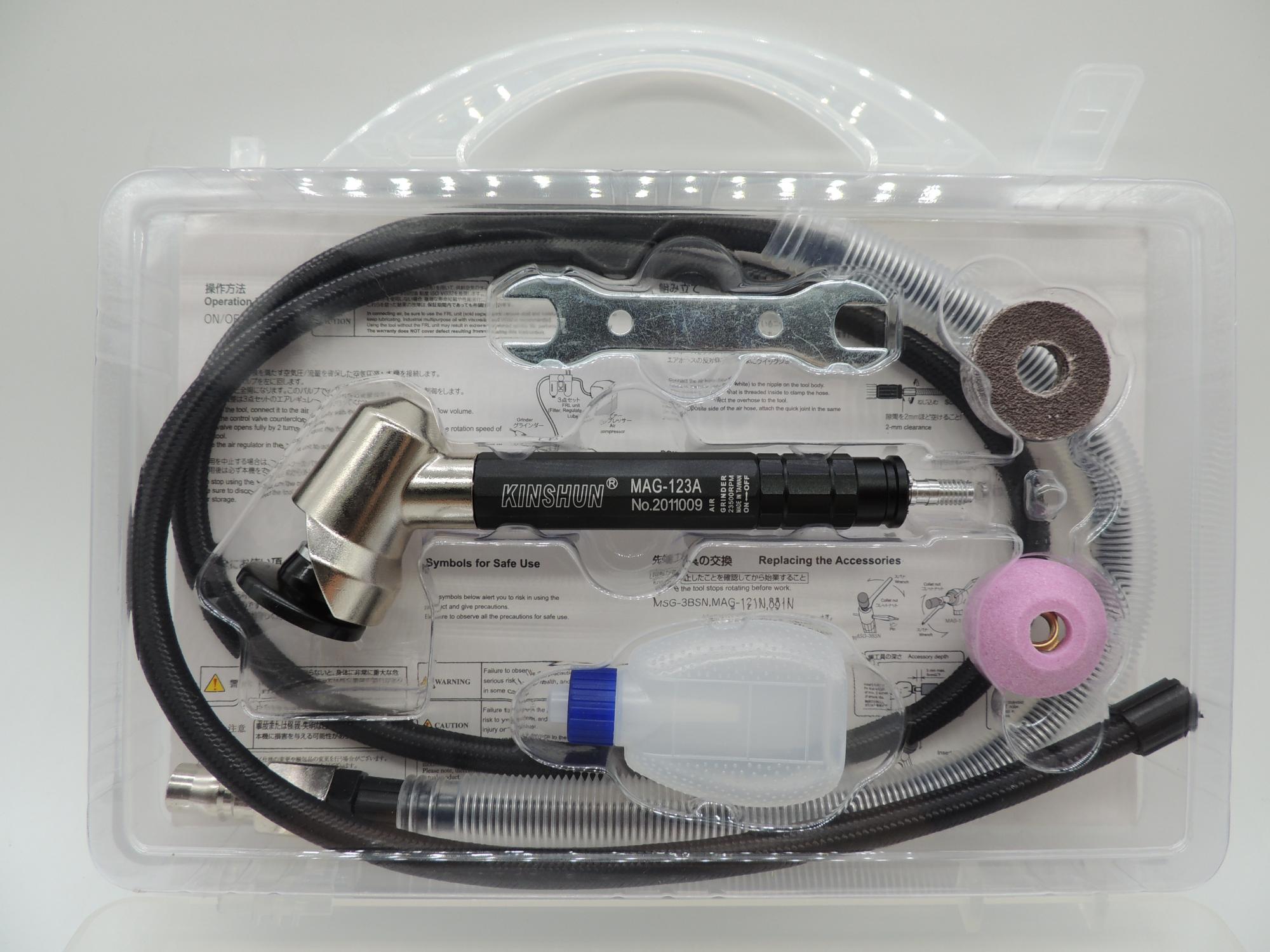

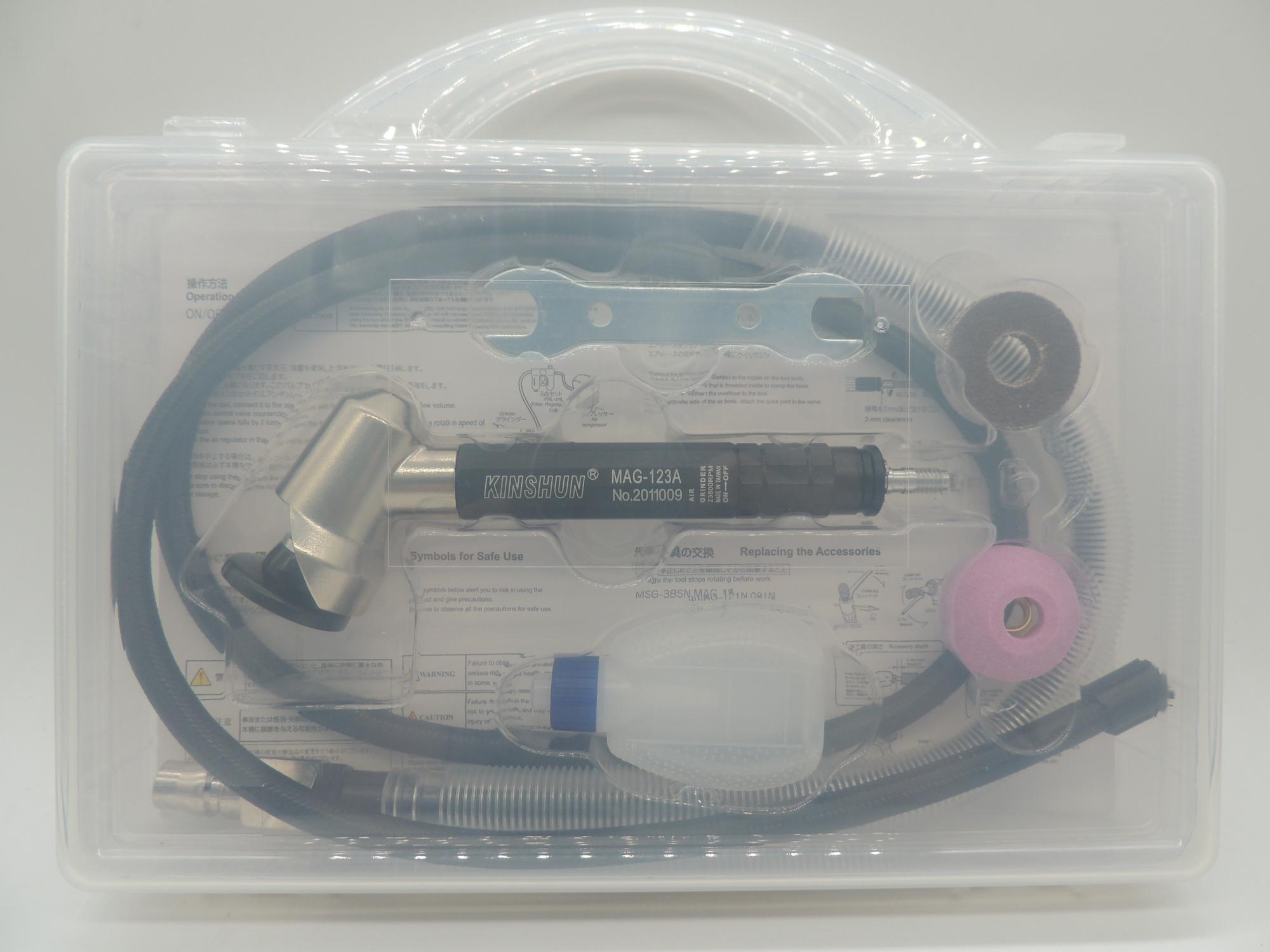

MAG-123A-Package
