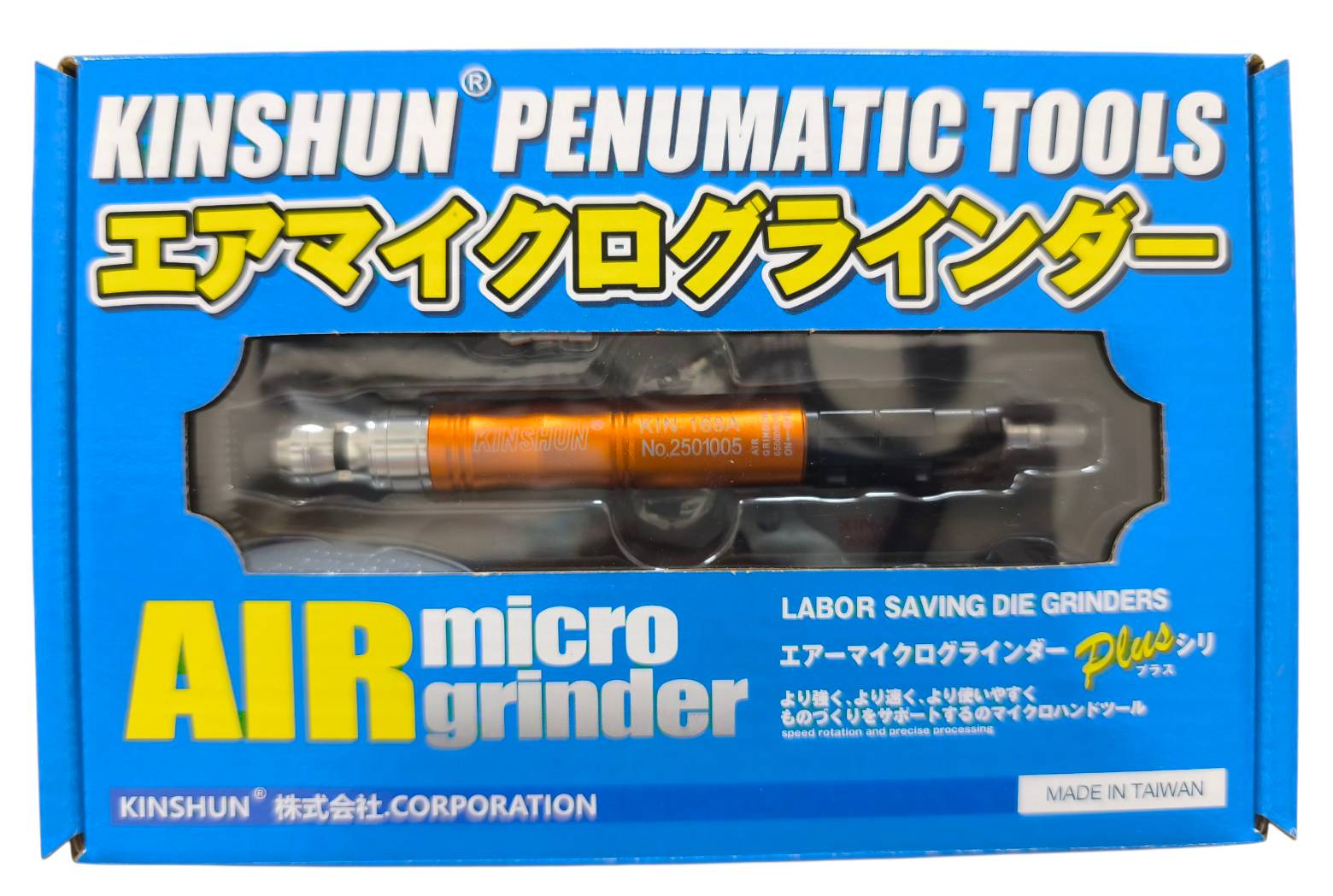

KIN-168A (High speed curve type)
All parts are machined in-house on a Japanese-made STAR (Automatic Lathe) milling machine to ensure precision and assembly accuracy! (Industry-leading quality)
High-speed curved handle
Concentricity 0.01-0.03mm
Ergonomic curved handle
Free Speed：65000 rpm
Vibration Value:1.0m/S²
Collet：3mm(1/8”) – Replacement
Sound Pressure:85 dba
Net Weight(Micro Air Grinder +Tube )： 0.163Kg
Net weight of machine body: 64.5g
Packaging (+Accessory Kit Weight )(1pcs)：0.4kg
Length：140mm
Without muffler tube:94dba
Tool Dimension：16mm
Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
Air Consumption：0.12 m3/min (4CFM-113L/min)
Exhaust System：Before .Rear
Air Inlet：1/4”
Hose Length：1300mm(Tube inner diameter 5mm)
Rotational Concentricity：0.01-0.03M/M
Switch：Switch fine-tuning. Roll Type Throttle.
Packing：25 pcs/1.4cu-ft/G.W.:10.7kgs /N.W:10.0kgs(42CM*35 CM*27 CM)

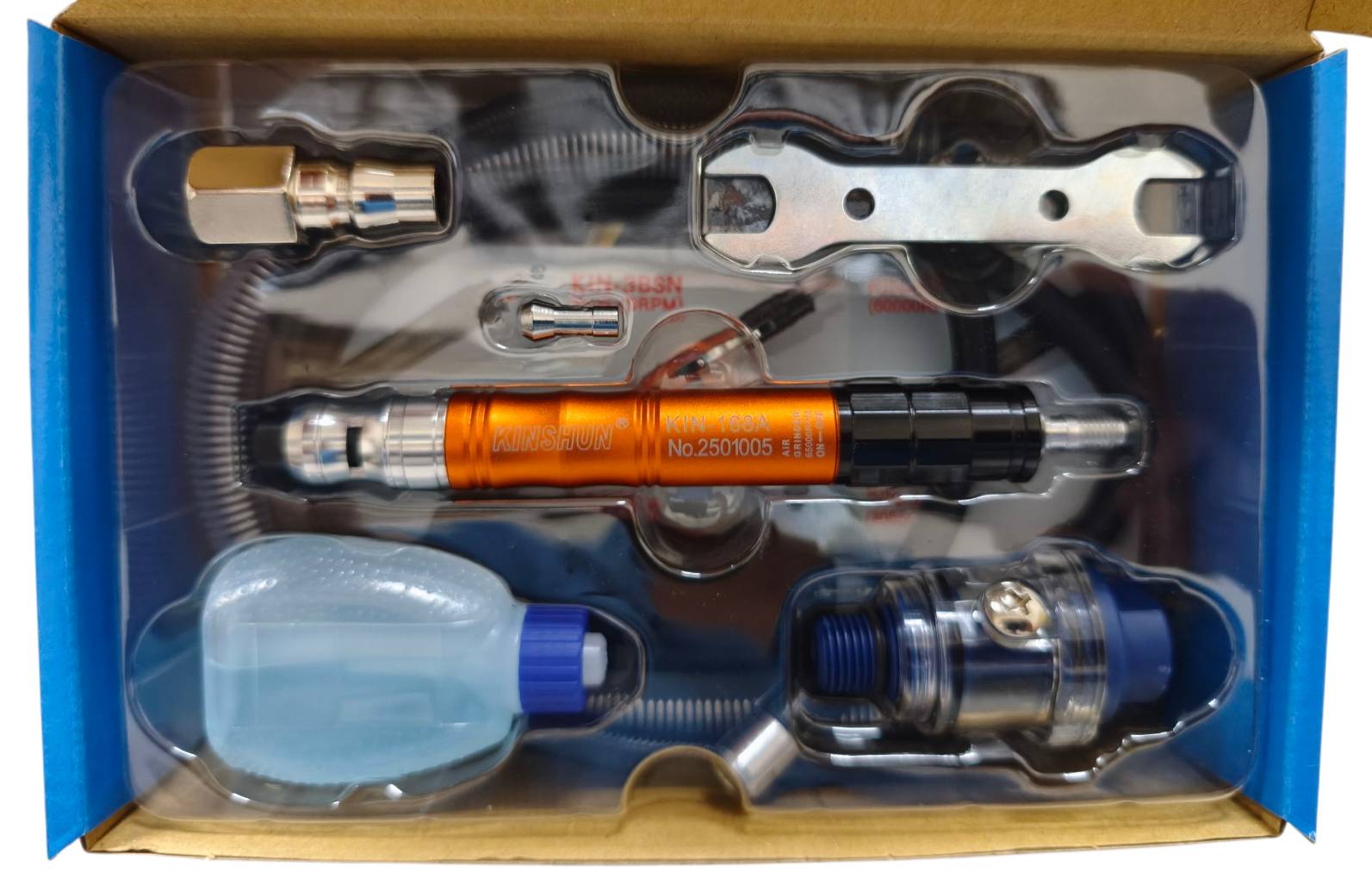

KIN-168A Standard Accessories
Wrench (9x9mm) x 1 pc
L-shaped wrench (9x9mm) x 1 pc
Oiler x 1 pc
Quick connector x 1 pc
Lubricator x 1 pc
Chuck x 1 pc
Non-slip sponge cover x 1 pc
KIN-168A Configuration
Casing: Aluminum alloy
Milling cylinder
Rotor: Stainless steel
Veils: 3 pcs (extended)
Bearings: 3 pcs
3-way air pad (diverter): Aluminum alloy
Bearing seat: Copper
Chuck: Steel
KIN-168A Features
Curved high-speed type
Concentricity: 0.01-0.03mm
High-quality bearings effectively extend service life
Ideal for machining molds, dies, or other small grinding necessities
Low vibration helps reduce noise and ease control
Packing:
