KIN-360A Heavy Duty Cutting. Ultra-High Torque Model - Mechanically Clampable 3+6MM Dual-Purpose Machine
All parts are machined in-house on a Japanese-made STAR (Automatic Lathe) milling machine, ensuring both component and assembly accuracy! (Industry-leading quality)
KIN-360A Features:
Enlarged rotor, blades, and cylinder
Excellent durability and high torque
Industrial-grade
Extremely drop-resistant housing
Ideal for molds, dies, and other grinding applications
High-quality bearings effectively extend service life
Low vibration reduces noise and eases control
Free Speed： 30000 rpm
Vibration Value:1.0m/S²
Collet：3mm+6MM
Sound Pressure:88dba
Net Weight(Micro Air Grinder +Tube )： 0.30Kg
Net weight of machine body: 200g
Without muffler tube:92dba
Packaging (+Accessory Kit Weight )(1pcs)：0.550kg
Length：165mm
Tool Dimension：23mm
Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
Air Consumption： 0.12 m3/min (4CFM-113L/min)
Air Inlet：1/4”
Exhaust System：Rear
Hose Length：1300mm(Tube inner diameter 5mm)
Rotational Concentricity：0.01-0.03m/m
Switch：Switch fine-tuning. Roll Type Throttle.
Packing：25 pcs/1.4cu-ft/G.W.:14.5kgs /N.W:13.8kgs(42CM*35 CM*27 CM)
KIN-360A Standard Accessories
Wrench (11x10mm) x 2 pcs
Oiler x 1 pc
Quick Connector x 1 pc
Lubricator x 1 pc
Chuck (6mm) x 1 pc
KIN-360 Configuration
Casing: Iron
Milling Cylinder: Enlarged
Rotor: Enlarged Stainless Steel
Veils: Enlarged and Thickened (3 pcs)
Bearings: 3 pcs
Bearing Seat: Copper
Ventilator (Diverter): Aluminum Alloy
Chuck: Steel
KIN-360 Features
Dual-Purpose 3+6mm Model - Enlarged Rotor, Vanes, and Cylinder
Excellent Durability, High Torque, Dual-Use
Industrial Grade/Regrinding
Heavy-Duty 3mm Pencil-Type Die Engraving Machine
Ideal for Die and Mold Processing, Molds, and Other Grinding Applications
High-Quality Bearings Effectively Extend Service Life

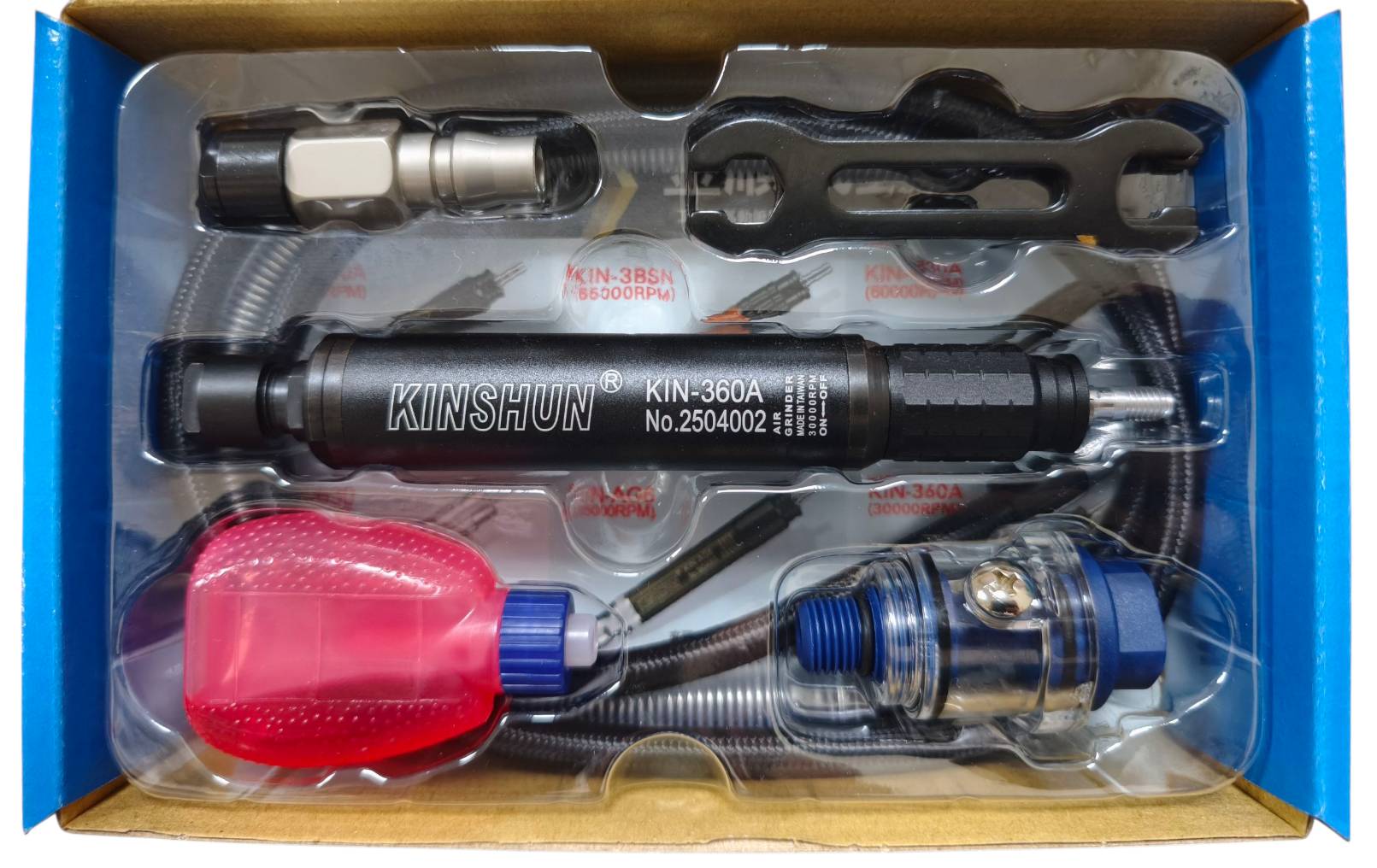

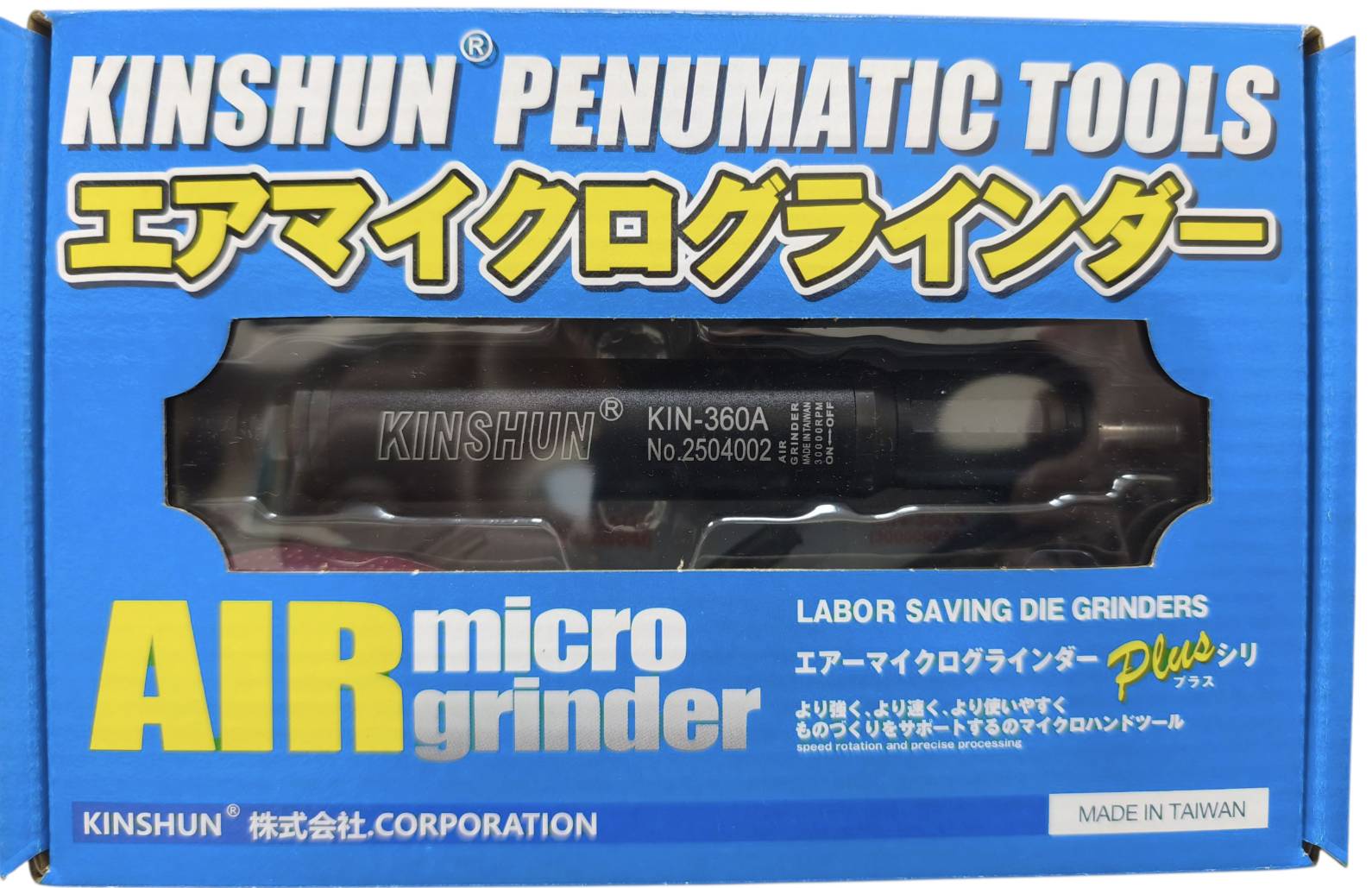

KIN-360A - Packaging
Wrench (11x10mm) x 2 pcs
Oiler x 1 pc
Quick Connector x 1 pc
Lubricator x 1 pc
Chuck (6mm) x 1 pc
KIN-360 Configuration
Casing: Iron
Milling Cylinder: Enlarged
Rotor: Enlarged Stainless Steel
Veils: Enlarged and Thickened (3 pcs)
Bearings: 3 pcs
Bearing Seat: Copper
Ventilator (Diverter): Aluminum Alloy
Chuck: Steel
KIN-360 Features
Dual-Purpose 3+6mm Model - Enlarged Rotor, Vanes, and Cylinder
Excellent Durability, High Torque, Dual-Use
Industrial Grade/Regrinding
Heavy-Duty 3mm Pencil-Type Die Engraving Machine
Ideal for Die and Mold Processing, Molds, and Other Grinding Applications
High-Quality Bearings Effectively Extend Service Life
KIN-360A - Packaging
