KIN-230
KIN-230
High Speed
- Free Speed:70000 rpm
- Vibration Value:1.0m/S²
- Collet:3mm(1/8”) – Replacement
- Sound Pressure:88 dba
- Net Weight(Micro Air Grinder +Tube ):0.16Kg
- Net weight of machine body: 64.4g
- Without muffler tube:94dba
- Packaging (+Accessory Kit Weight )(1pcs):0.37kg
- Length:140mm
- Tool Dimension:15.5mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption:0.12 m3/min (4CFM-113L/min)
- Exhaust System:Before .Rear
- Air Inlet:1/4”
- Hose Length:1300mm(Tube inner diameter 5mm)
- Rotational Concentricity:0.01-0.03M/M
- Switch:Switch fine-tuning. Roll Type Throttle.
- Packing:25 pcs/1.4cu-ft/G.W.:10kgs/N.W:9.3kgs (42CM*35 CM*27CM)

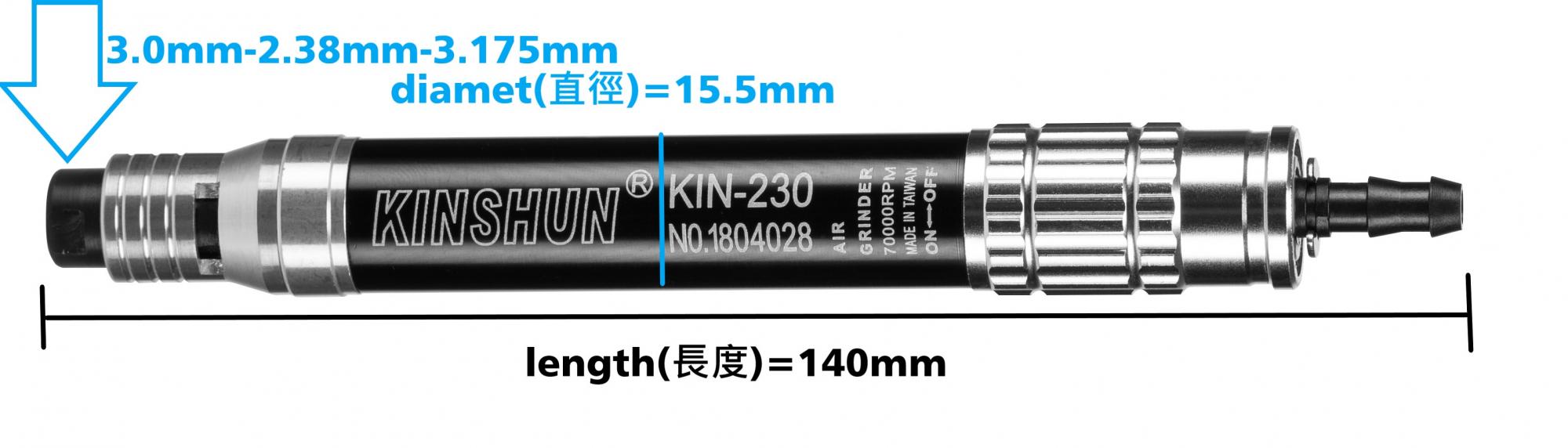

KIN-230-Size marking chart

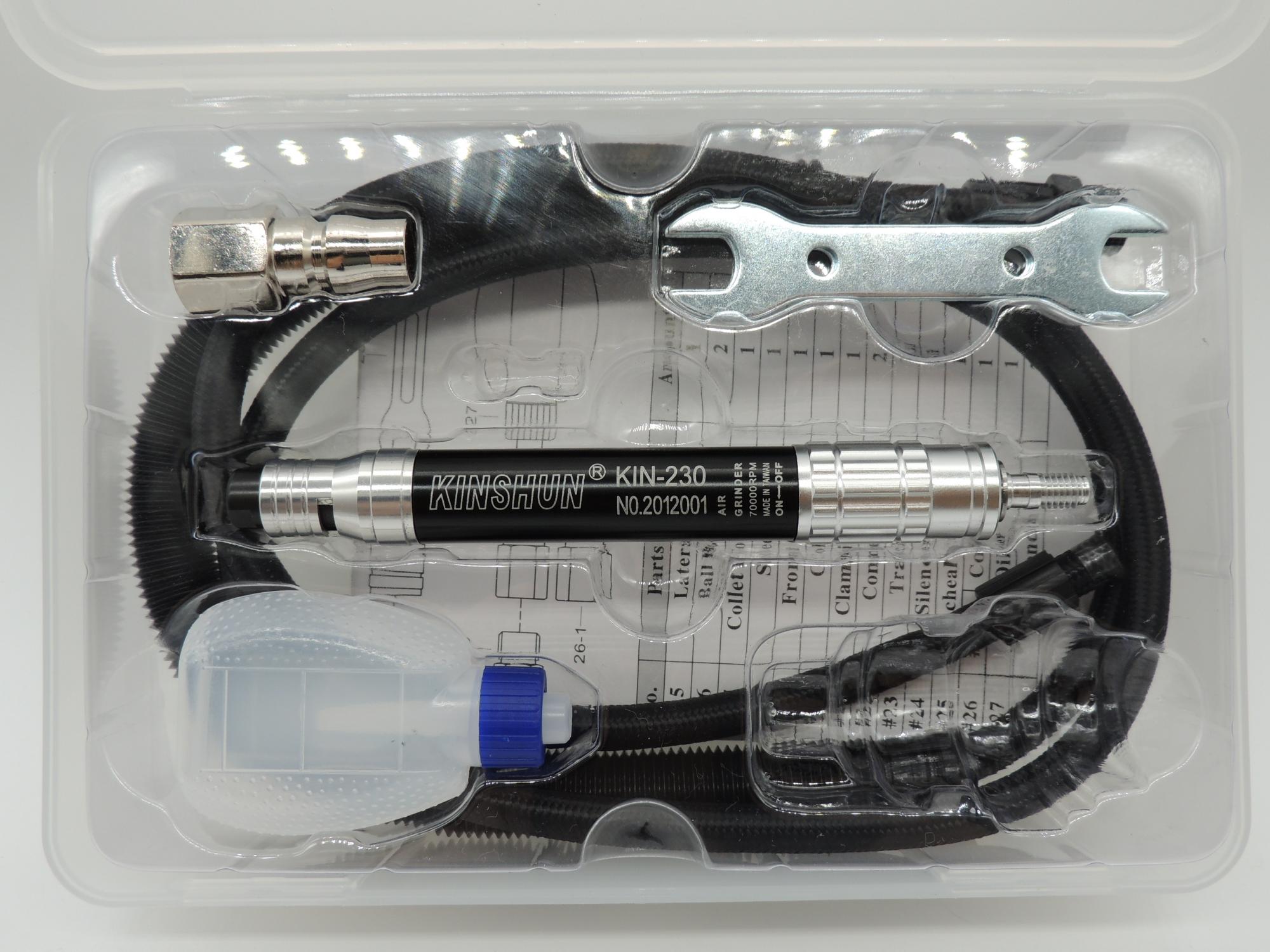

KIN-230 STANDARD ACCESSORY
- Spanner (9x9mm) x2pcs
- Spanner (Ltype9x9mm)x1pcs
- Oil Can x1pcs
- Super Plug x1pcs
KIN-230 Material
- Shell:Aluminum alloy - Selectable color
- Cylinder:SCM420 Alloy steel
- Rotor: Stainless steel
- Blade:3pcs
- Bearing:3pcs
- Bearing Housing:Aluminum
- Collet: Steel
KIN-230 Features
- High speed.
- Low torque.
- Low vibration helps to reduce noise and to ease the control.
- Suitable for polishing.

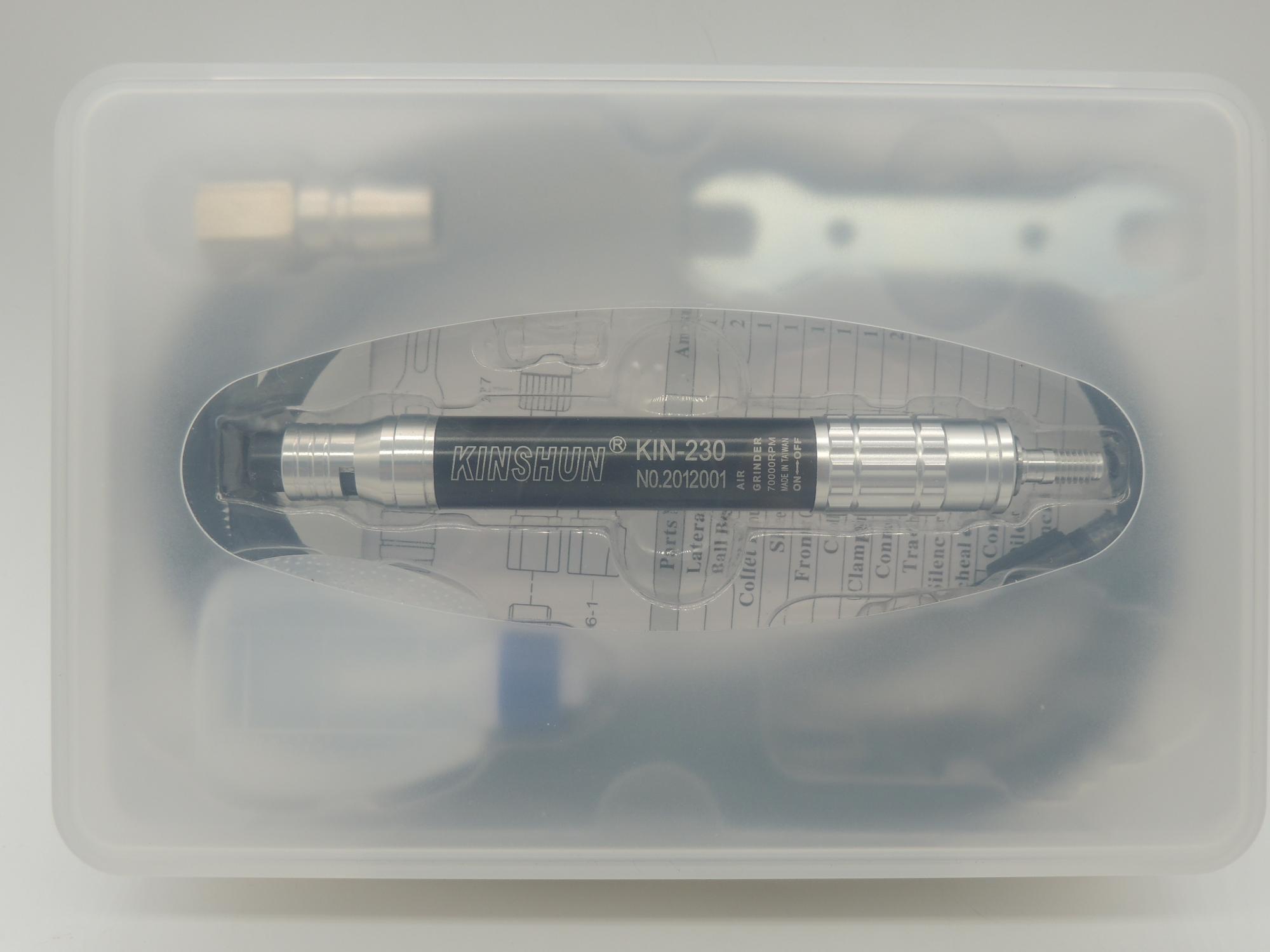

KIN-230-Package
