High Speed

• Free Speed：70000 rpm
• Vibration Value:1.0m/S²
• Collet：3mm(1/8”) – Replacement
• Sound Pressure:88dba
• Net Weight(Micro Air Grinder +Tube )：0.16Kg
• Net weight of machine body: 64.9g
• Without muffler tube:94dba
• Packaging (+Accessory Kit Weight )(1pcs)：0.37kg
• Length：140mm
• Tool Dimension：15.5mm
• Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
• Air Consumption：0.12 m3/min  (4CFM-113L/min)
• Exhaust System：Before .Rear
• Air Inlet：:1/4”
• Hose Length：1300mm(Tube inner diameter 5mm)
• Rotational Concentricity：0.01-0.03M/M
• Switch：Switch fine-tuning. Roll Type Throttle.
• Packing：25 pcs/1.4cu-ft/G.W.:10kgs/N.W:9.3kgs (42CM*35 CM*27CM)

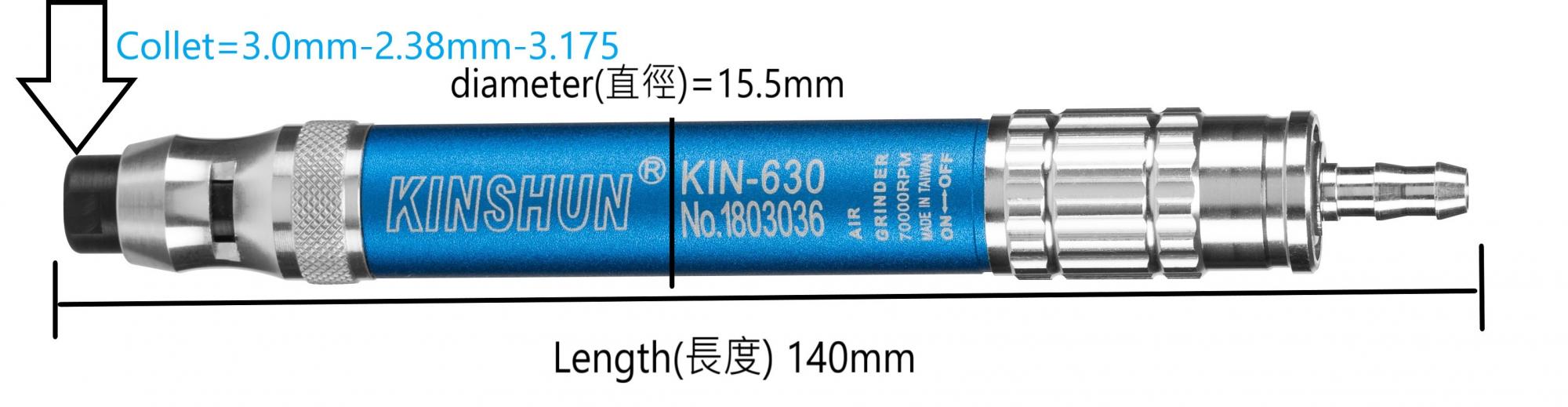

KIN-630-Size marking chart

KIN-630 STANDARD ACCESSORY

• Spanner (9x9mm) x1pcs
• Spanner (Ltype9x9mm)x1pcs
• Oil Can x1pcs
• Super Plug x1pcs

KIN-630 Material

• Shell：Aluminum alloy - Selectable color
• Cylinder：SCM420 Alloy steel
• Rotor： Stainless steel
• Blade：3pcs
• Bearing：3pcs
• Bearing Housing：Aluminum
• Collet：Steel

KIN-630 Features

• High speed.
• ordinary torque.
• Low vibration helps to reduce noise and to ease the control.
• Suitable for polishing.

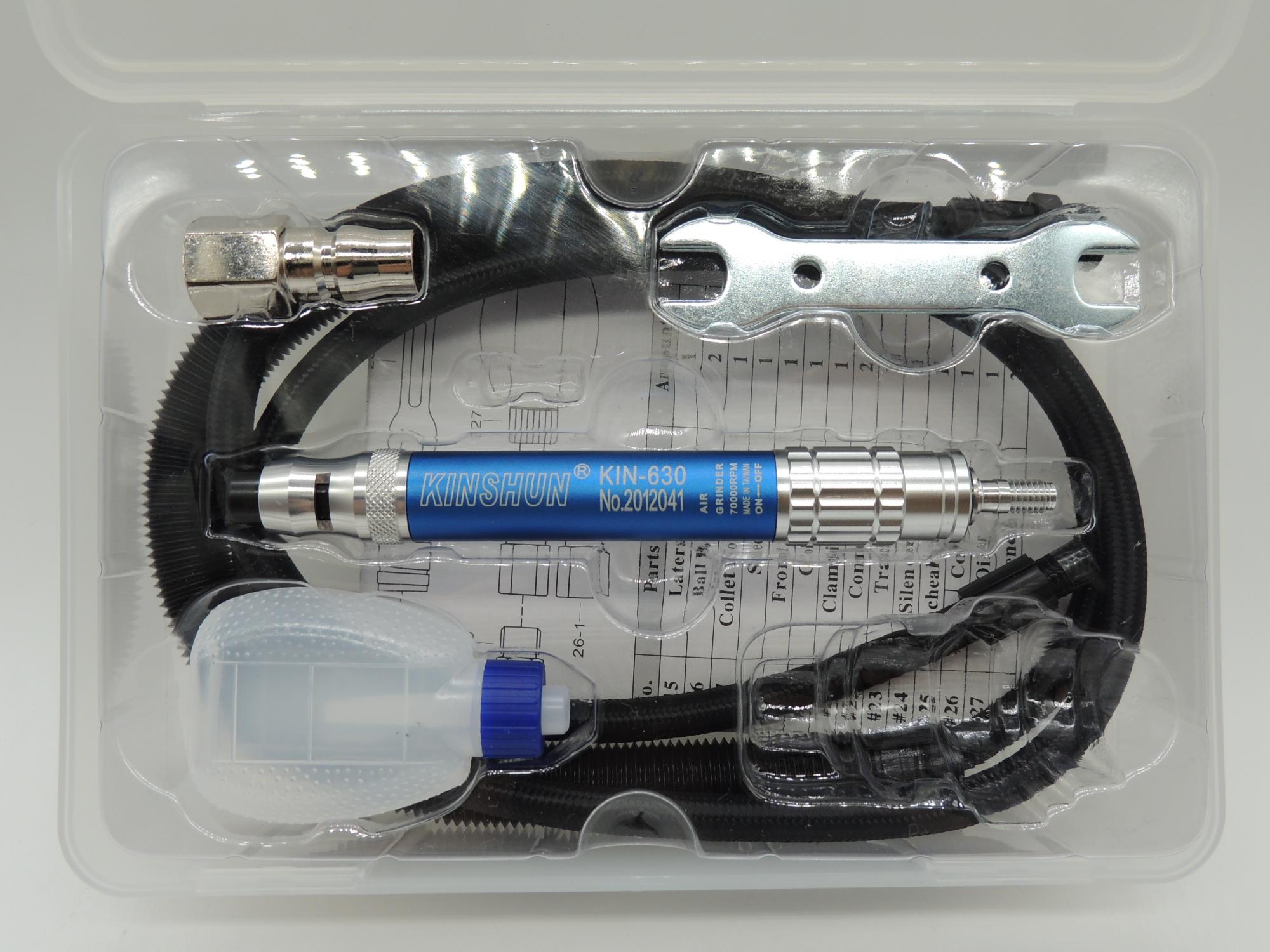

KIN-630-Package

KIN-630影片連結
