Japanese-Style(High speed and durable)

• Free Speed：70000 rpm
• Vibration Value:1.0m/S²
• Collet：3mm(1/8”) – Replacement
• Sound Pressure:88dba
• Net Weight(Micro Air Grinder +Tube )： 0.17Kg
• Net weight of machine body: 72.6g
• Without muffler tube:94dba
• Packaging (+Accessory Kit Weight )(1pcs)：0.378kg
• Length：140mm
• Tool Dimension：16mm
• Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
• Air Consumption：0.12 m3/min  (4CFM-113L/min)
• Exhaust System：Before .Rear
• Air Inlet：1/4”
• Hose Length：1300mm(Tube inner diameter 5mm)
• Rotational Concentricity ：0.01-0.03M/M
• Switch：Switch fine-tuning. Roll Type Throttle.
• Packing：25 pcs/1.4cu-ft/G.W.: 10.2kgs/N.W:9.5kgs(42 CM*35 CM*27 CM)

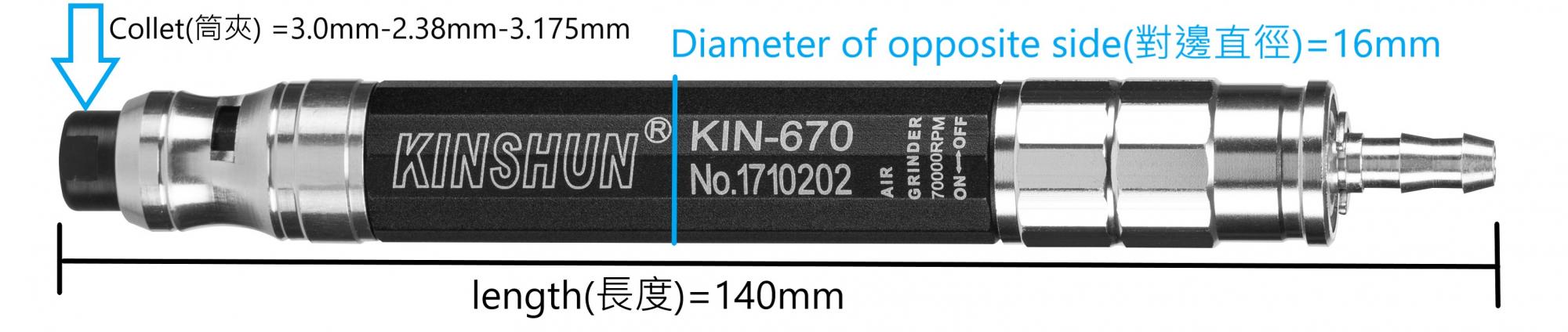

KIN-670-Size marking chart

KIN-670 STANDARD ACCESSORY

• Spanner (9x9mm) x1pcs
• Spanner (Ltype9x9mm)x1pcs
• Oil Can x1pcs
• Super Plug x1pcs

KIN-670 Material

• Shell：Aluminum alloy - Selectable color
• Cylinder：SCM420 Alloy steel
• Rotor：stainless steel
• Blade：3pcs
• Bearing：3pcs
• Splitter： Aluminum alloy
• Bearing Housing：Copper
• Collet：Steel

KIN-670 Features

• High speed and durable.
• Durable. High speed. Ordinary torque.
• High quality bearings efficiently increase the lifetime.
• Low vibration helps to reduce noise and to ease the control.
• Suitable for polishing.

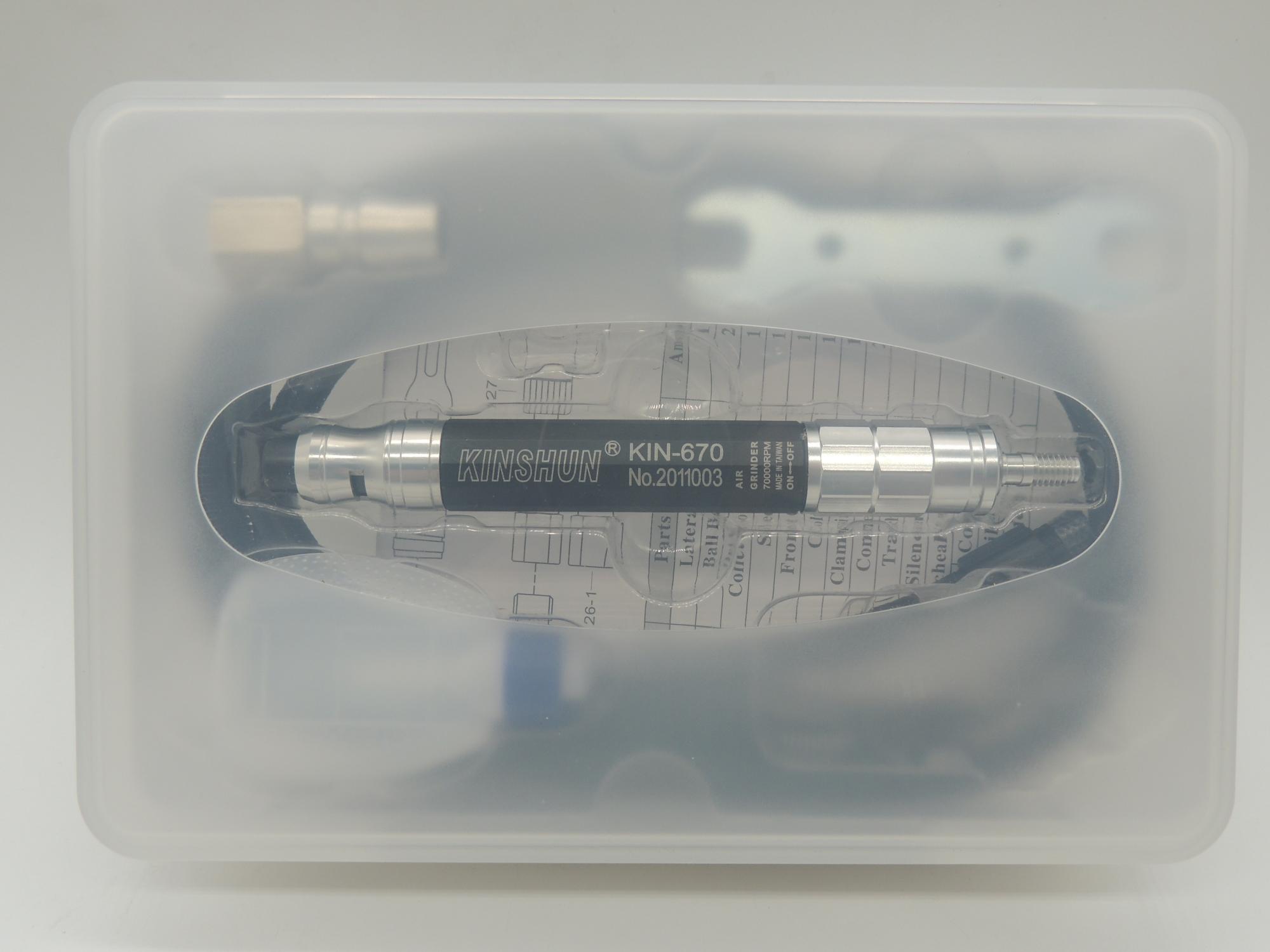

KIN-670-Package
