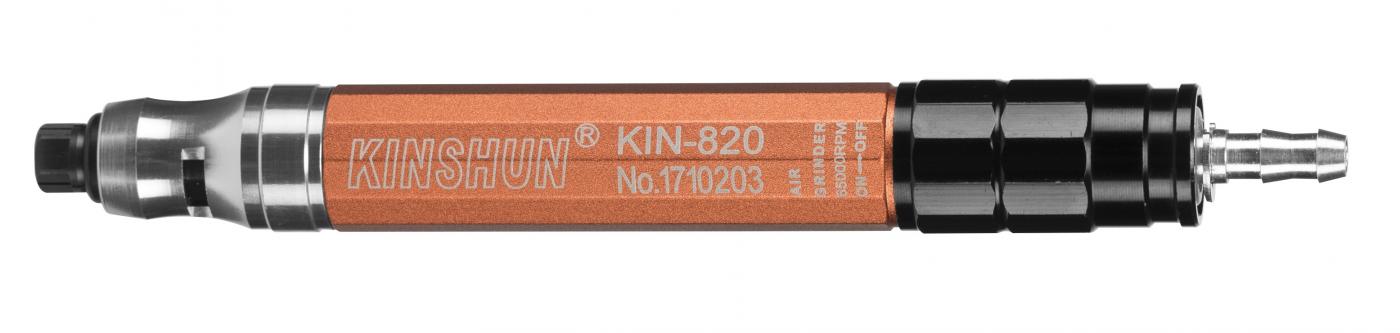

KIN-820
KIN-820
German-Style( Integrally Molded Collet)
- Free Speed:65000 rpm
- Vibration Value:1.0m/S²
- Collet:3mm(2.38mm) – Replacement
- Sound Pressure:85 dba
- Net Weight(Micro Air Grinder +Tube ): 0.17Kg
- Net weight of machine body: 73.6g
- Without muffler tube:94dba
- Packaging (+Accessory Kit Weight )(1pcs):0.402kg
- Length:140mm
- Tool Dimension:16mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption:0.12 m3/min (4CFM-113L/min)
- Exhaust System:Before .Rear
- Air Inlet:1/4”
- Hose Length:1300mm(Tube inner diameter 5mm)
- Rotational Concentricity:0.02M/M
- Switch:Switch fine-tuning. Roll Type Throttle.
- Packing:25 pcs/1.4cu-ft/G.W.:10.9kgs /N.W:10.2kgs(42CM*35 CM*27 CM)

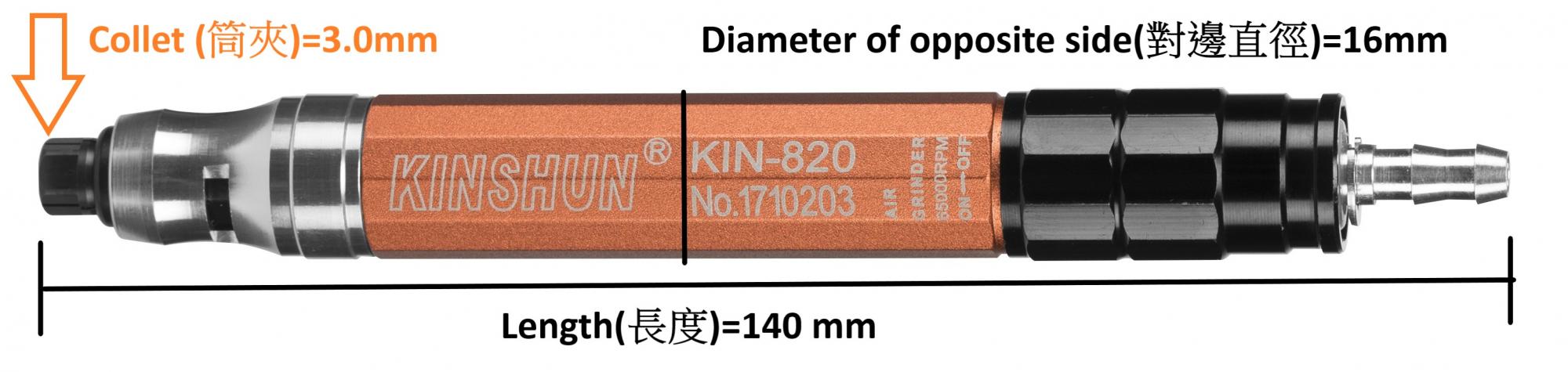

KIN-820-Size marking chart
KIN-820 STANDARD ACCESSORY
- Spanner (9x7mm) x2pcs
- Oil Can x1pcs
- Super Plug x1pcs
- Oil Injector x1pcs
- Non-slip sponge cover x1pcs
KIN-820 Material
- Shell:Aluminum alloy - Selectable color
- Cylinder:SCM420 Alloy steel
- Rotor:Stainless steel
- Blade:3pcs
- Bearing:3pcs
- Splitter: Aluminum alloy
- Bearing Housing:Copper
- Collet:Steel
KIN-820 Features
- Rotational concentricity 0.02mm (German-Style).
- Durable. Medium torque. Accurate.
- High quality bearings efficiently increase the lifetime.
- Low vibration helps to reduce noise and to ease the control.
- Ideal for machining dies, molds or other tiny grinding necessities.

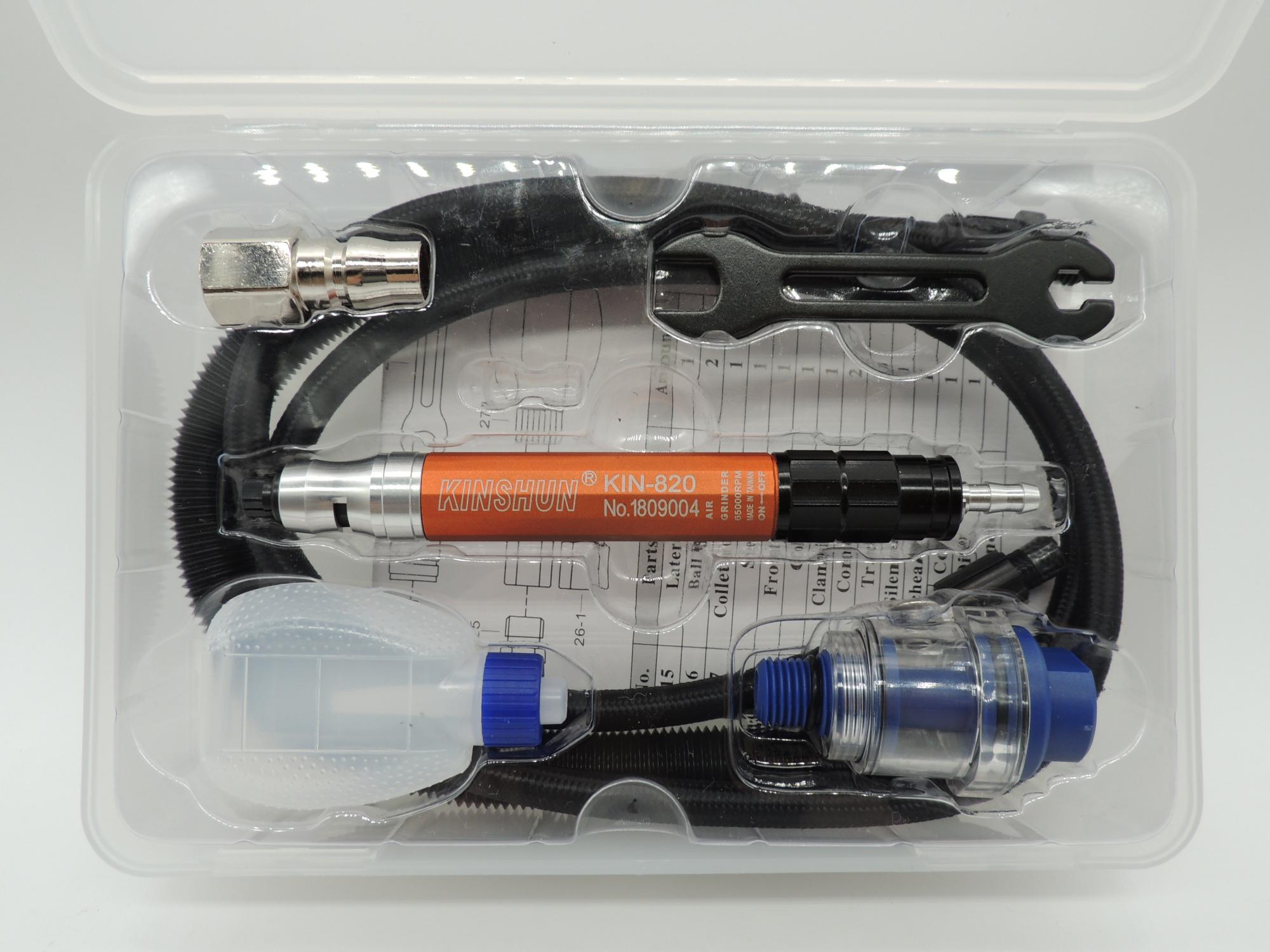

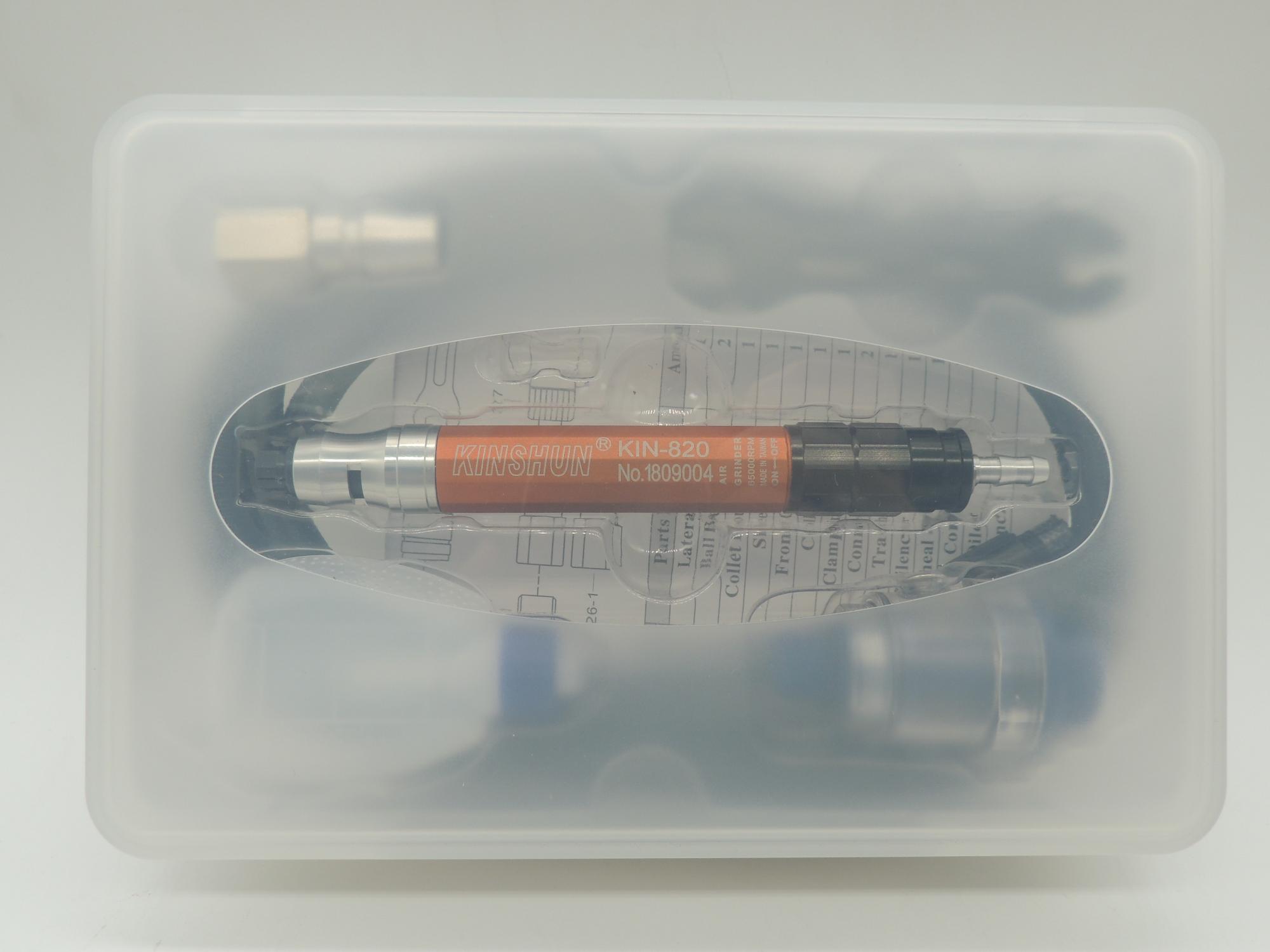

KIN-820-Package
