Integrally Molded Collet (High Concentricity)

• Free Speed：65000 rpm
• Vibration Value:1.0m/S²
• Collet：3mm(4.0mm)- Not replaceable
• Sound Pressure:85dba
• Net Weight(Micro Air Grinder +Tube )： 0.17Kg
• Net weight of machine body: 73.3g
• Without muffler tube:94dba
• Packaging( Net Weight)(1pcs)：0.402kg
• Length：140mm
• Tool Dimension：16mm
• Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
• Air Consumption：0.12 m3/min  (4CFM-113L/min)
• Exhaust System：Rear
• Air Inlet：1/4”
• Hose Length：1300mm(Tube inner diameter 5mm)
• Rotational Concentricity：0.01m/m
• Switch：Switch fine-tuning. Roll Type Throttle.
• Packing：25 pcs/1.4cu-ft/G.W.:10.9kgs /N.W:10.2kgs(42CM*35 CM*27 CM)

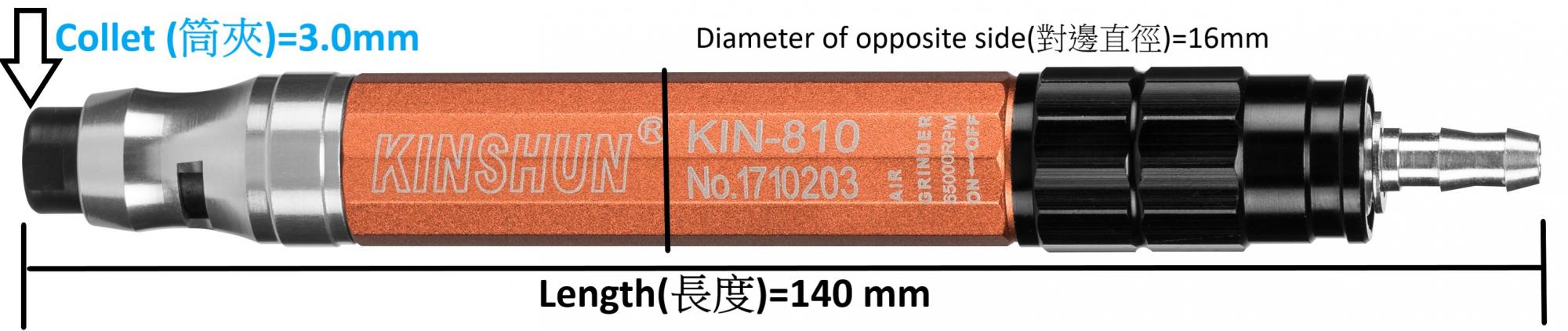

KIN-810-Size marking chart

KIN-810 STANDARD ACCESSORY

Spanner (9x9mm)x1pcs
Spanner (Ltype9x9mm)x1pcs
Oil Can x1pcs
Super Plug x1pcs
Oil Injector x1pcs
Non-slip sponge cover x1pcs

KIN-810 Material

Shell：Aluminum alloy - Selectable color
Cylinder：SCM420 Alloy steel
Rotor：Stainless steel
Blade：3pcs
Bearing：3pcs
Splitter： Aluminum alloy
Bearing Housing：Copper
Collet：Steel

KIN-810 Features

Rotating concentricity 0.01mm for ultra-fine precision machining.
Durable. Medium torque. Accurate.
High quality bearings efficiently increase the lifetime.
Low vibration helps to reduce noise and to ease the control.
Ideal for machining dies, molds or other tiny grinding necessities.

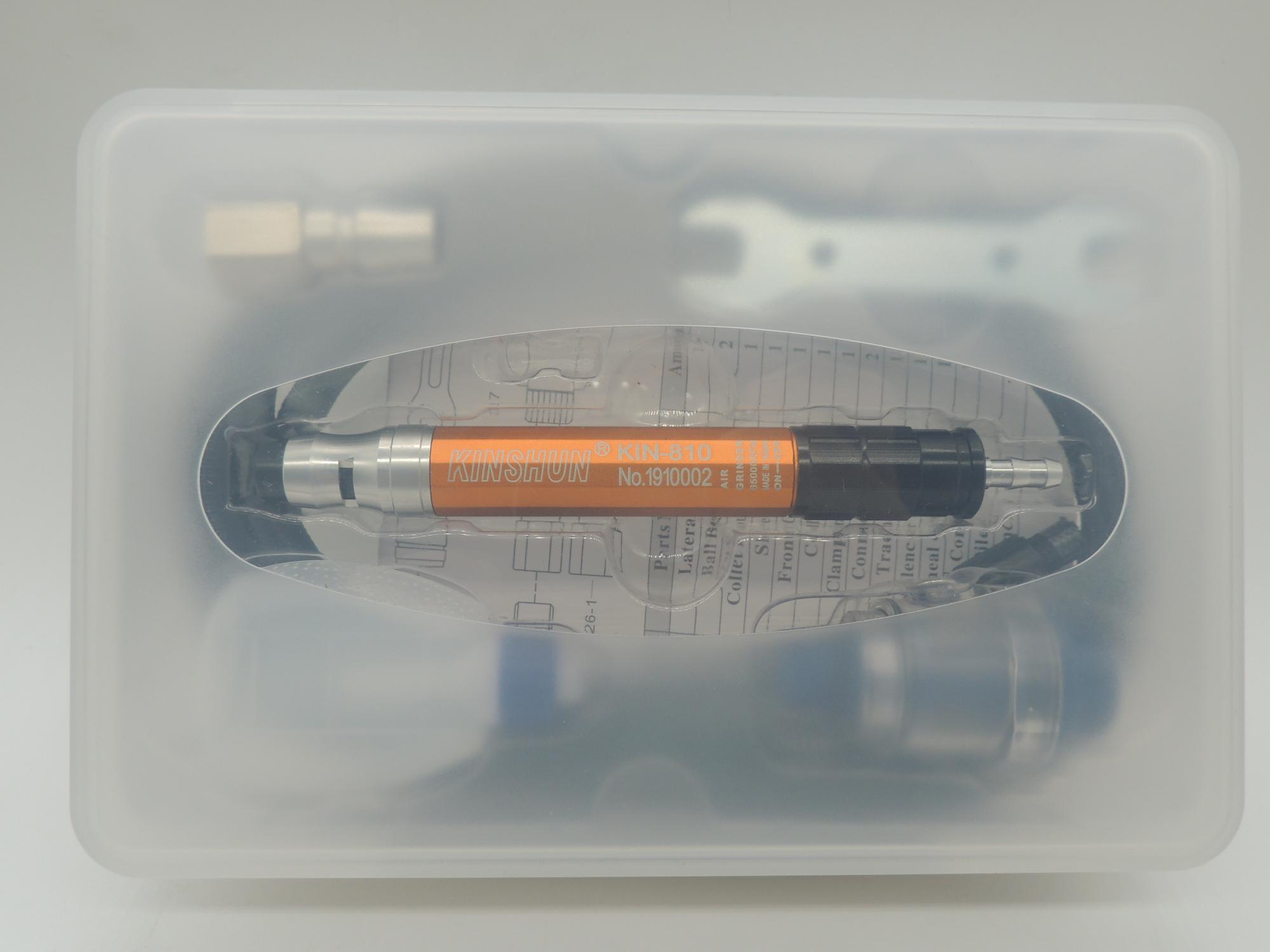

KIN-810-Package
