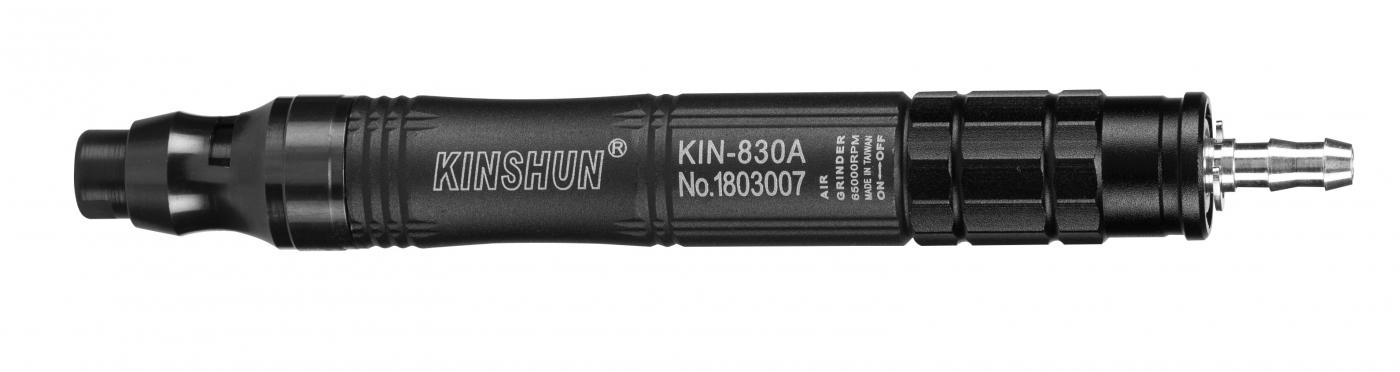

KIN-830A Silent High Torque Curved Housing
Parts are machined entirely in-house on our in-house, Japanese-made STAR (Automatic Lathe) mill-turn machine, ensuring both component and assembly accuracy! (Industry-leading quality)
KIN-830A Features
Quiet exhaust design, curved housing, high torque
Durable, high torque, quiet, comfortable grip
Industrial-grade/regrinding
High-quality bearings effectively extend service life
Low vibration reduces noise and eases control
Ideal for machining molds, dies, and other grinding applications
Comfortable handle allows for smooth operation
Mute High torque -80 decibel
Ideal for machining dies, molds or other tiny grinding necessities
- Free Speed：60000 rpm
- Vibration Value:1.0m/S²
- Collet：3mm(1/8”) – Replacement
- Sound Pressure:80dba
- Net weight of machine body: 72.9g
- Without muffler tube:88dba
- Net Weight(Micro Air Grinder +Tube )： 0.22Kg
- Packaging (+Accessory Kit Weight )(1pcs)：0.409kg
- Length：140mm
- Tool Dimension：17mm
- Air Pressure：5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption：0.12 m3/min (4CFM-113L/min)
- Air Inlet：1/4”
- Exhaust System：Before .Rear
- Hose Length：1300mm(Tube inner diameter 5mm)
- Rotational Concentricity：0.01-0.03m/m
- Switch：Switch fine-tuning. Roll Type Throttle.
- Packing：25 pcs/1.4cu-ft/G.W.:10.9kgs/N.W:10.2 (42 CM*35 CM*27 CM)

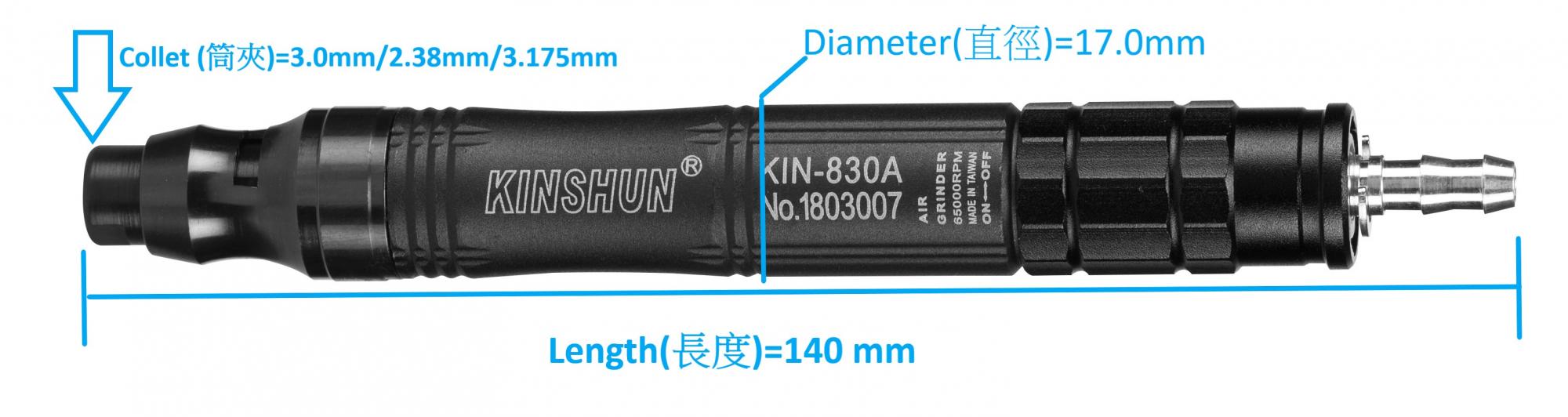

KIN-830A-Size marking chart

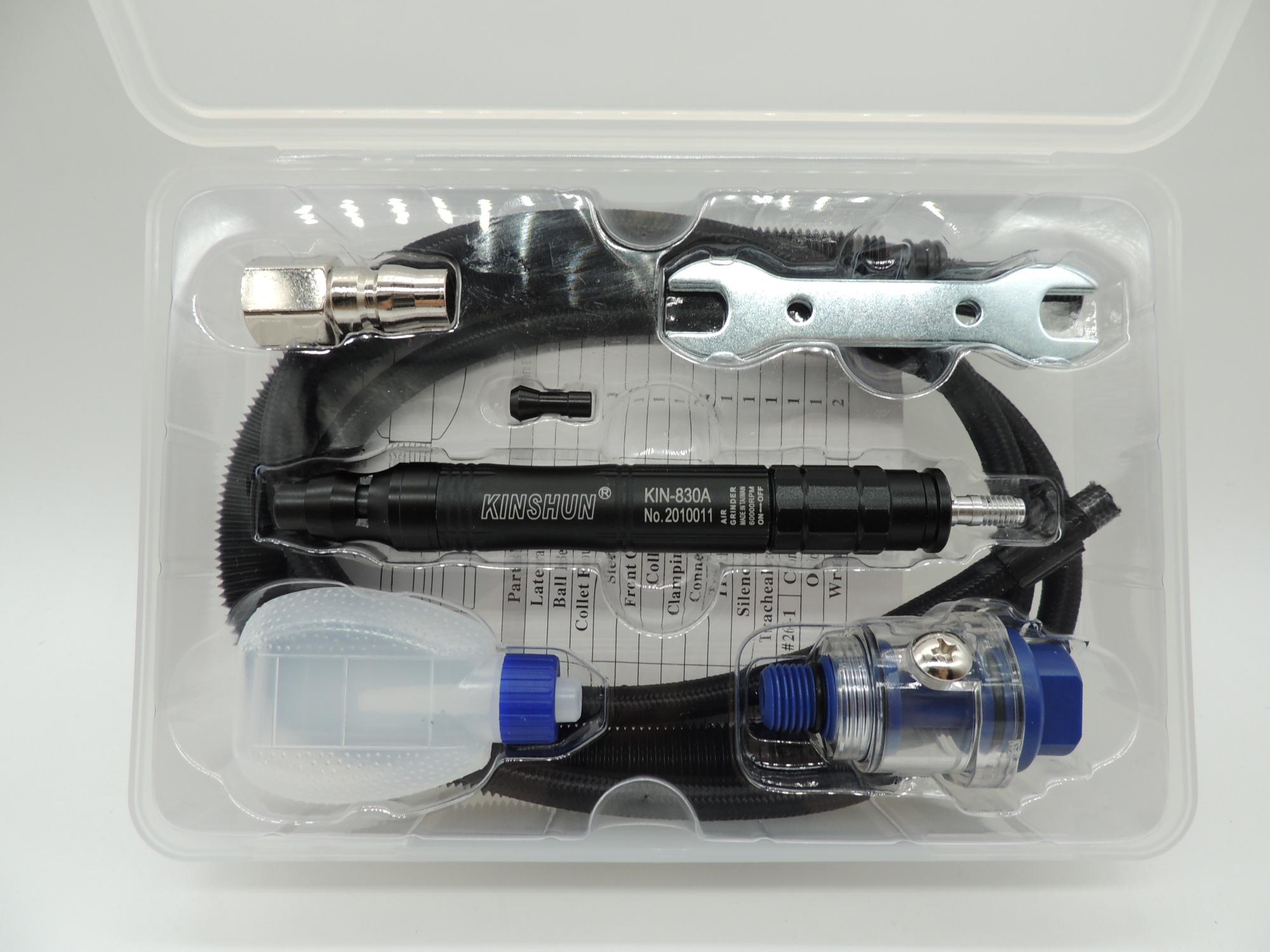

KIN-830A STANDARD ACCESSORY
- Spanner (9x9mm) x1pcs
- Spanner (Ltype9x9mm)x1pcs
- Oil Can x1pcs
- Super Plug x1pcs
- Oil Injector x1pcs
- Collet x1pcs
- Non-slip sponge cover x1pcs
KIN-830A Material
- Shell：Aluminum alloy
- Cylinder：SCM420 Alloy steel
- Rotor：Stainless steel
- Blade：3pcs
- Bearing：3pcs
- Bearing Housing：Copper
- Splitter：Aluminum alloy
- Collet：Steel
KIN-830A Features
- Exhaust mute design. Curved shell. High torque.
- Durable, high torque, small sound, good grip.
- Industrial grade/heavy grinding.
- High quality bearings efficiently increase the lifetime.
- Low vibration helps to reduce noise and to ease the control.
- Ideal for machining dies, molds or other restricted grinding applications.
- Comfortable handle allows smooth operation.
KIN-830A-Package
