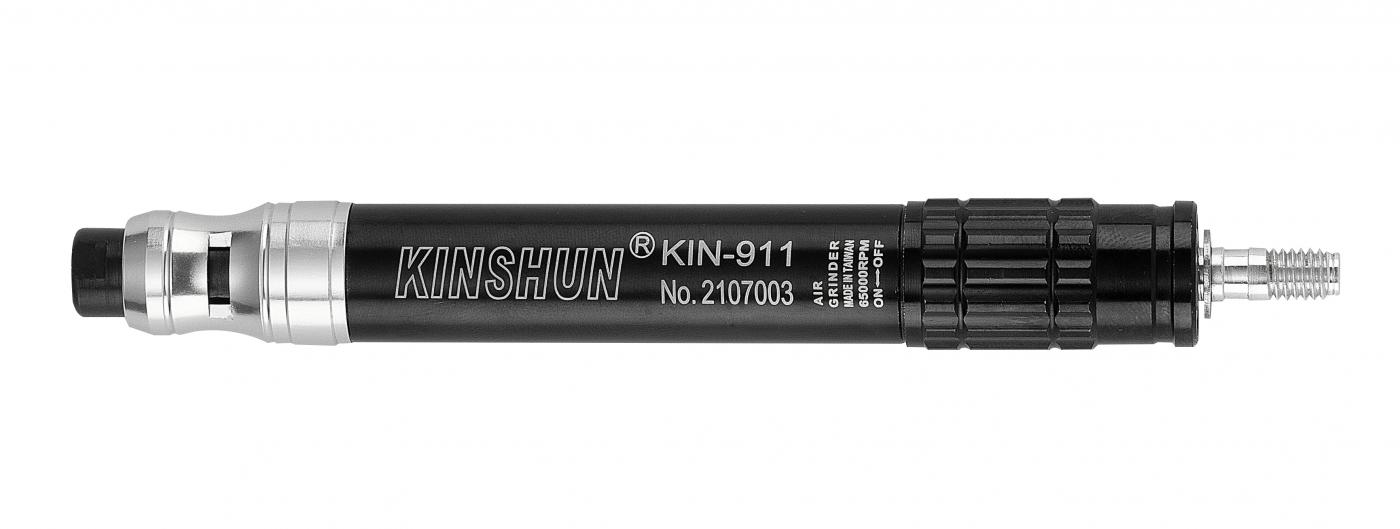

KIN-911
KIN-911
High torque and durable
- Free Speed:65000 rpm
- Vibration Value:1.0m/S²
- Collet:3mm~(1/8”) ~(2.38mm)-Replacement
- Net Weight(Micro Air Grinder +Tube ): 0.17Kg
- Net weight of machine body: 70.7g
- Sound Pressure:85 dba
- Packaging (+Accessory Kit Weight )(1pcs):0.4068kg
- Length:140mm
- Without muffler tube:94dba
- Tool Dimension:15.5mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption:0.12 m3/min (4CFM-113L/min)
- Exhaust System:Before .Rear
- Air Inlet:1/4”
- Hose Length:1300mm. (Tube inner diameter 5mm)
- Rotational Concentricity:0.01-0.03M/M
- Switch:Switch fine-tuning. Roll Type Throttle.
- Packing:25 pcs/1.4cu-ft/G.W.:10.8kgs/N.W:10.1kgs (42 CM*35 CM*27CM)

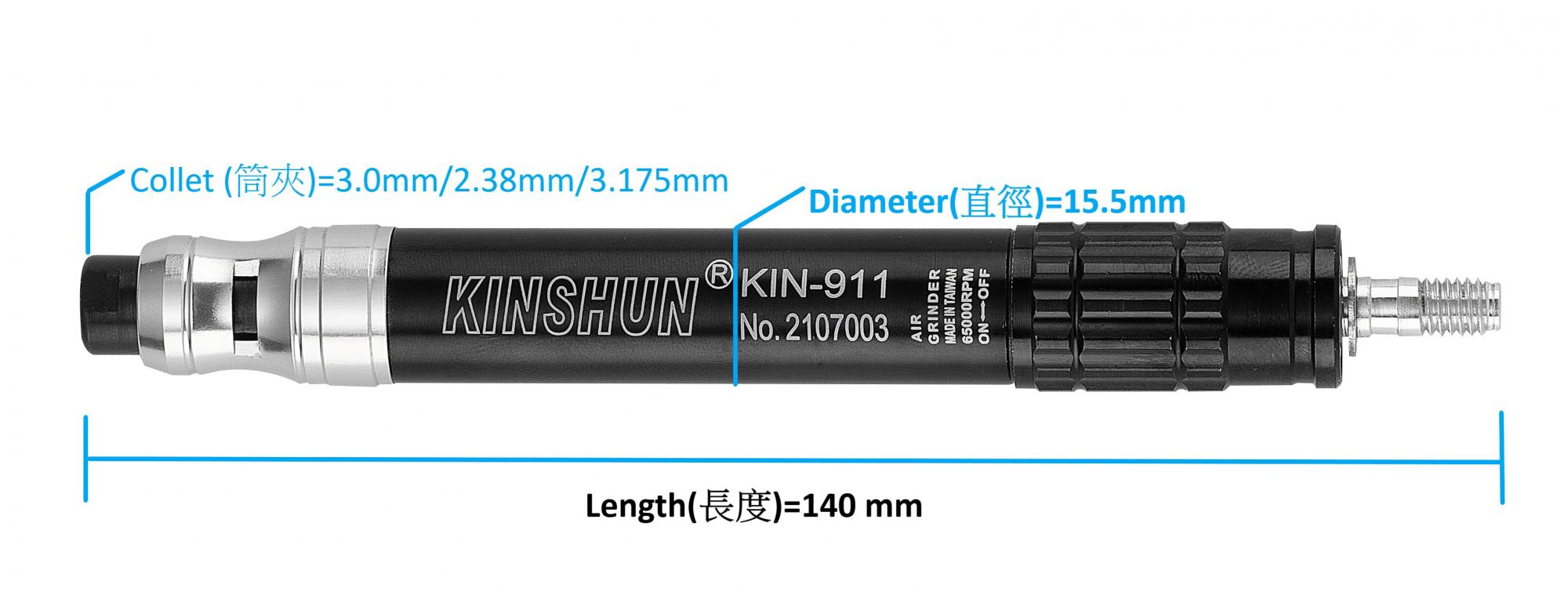

KIN-911-Size marking chart

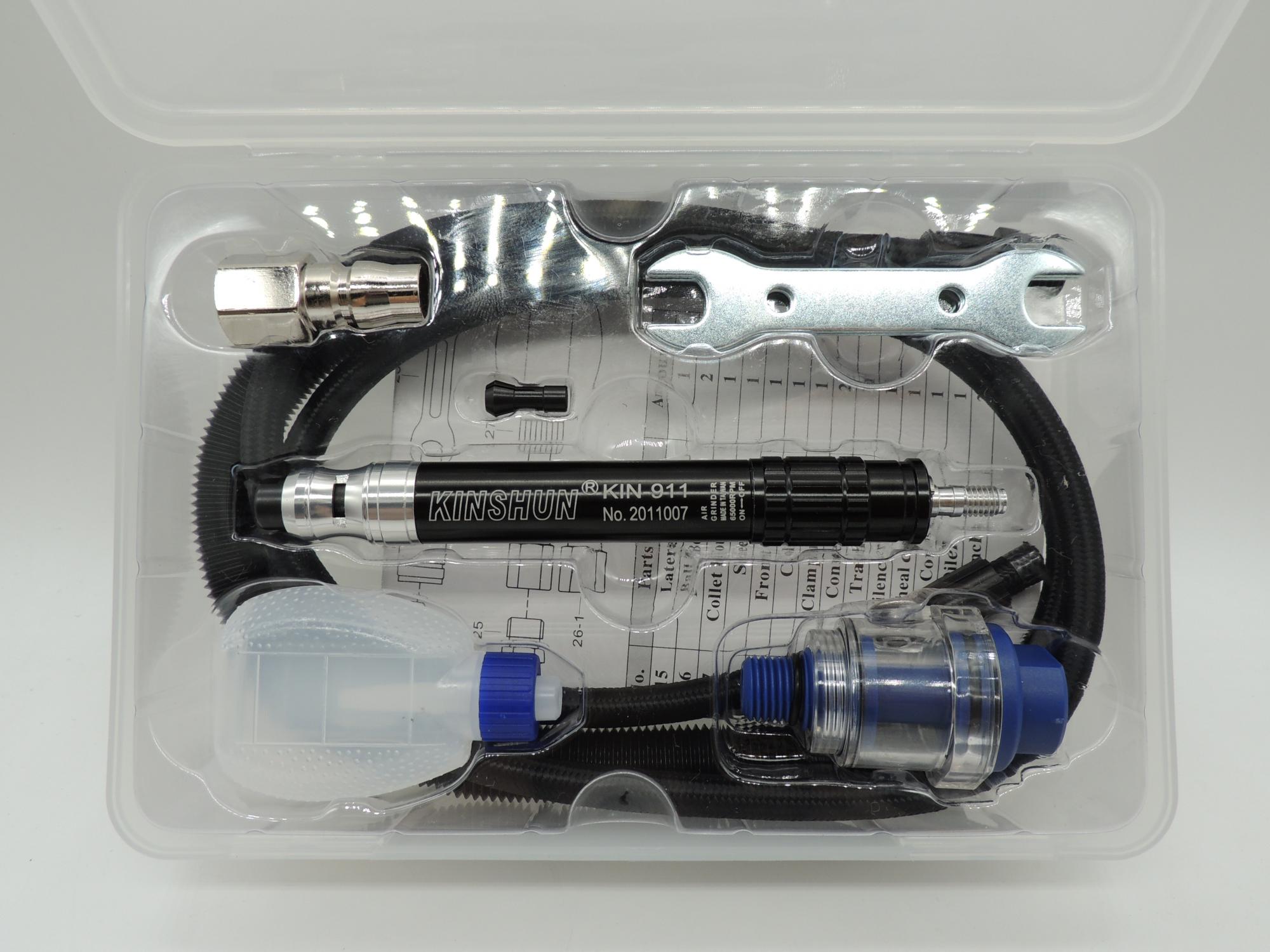

KIN-911 STANDARD ACCESSORY
- Spanner (9x9mm) x1pcs
- Spanner (Ltype9x9mm)x1pcs
- Oil Can x1pcs
- Super Plug x1pcs
- Oil Injector x1pcs
- Collet x1pcs
- Non-slip sponge cover x1pcs
KIN-911 Material
- Shell:Aluminum alloy - Selectable color
- Cylinder:SCM420 Alloy steel
- Rotor:Stainless steel
- Blade:3pcs
- Bearing:3pcs
- Bearing Housing:Copper
- Splitter: Aluminum alloy
- Collet:Steel
KIN-911 Features
- High-grade high torque and durable.
- Durable. Medium torque.
- High quality bearings efficiently increase the lifetime.
- Ideal for machining dies, molds or other tiny grinding necessities.
- Low vibration helps to reduce noise and to ease the control.

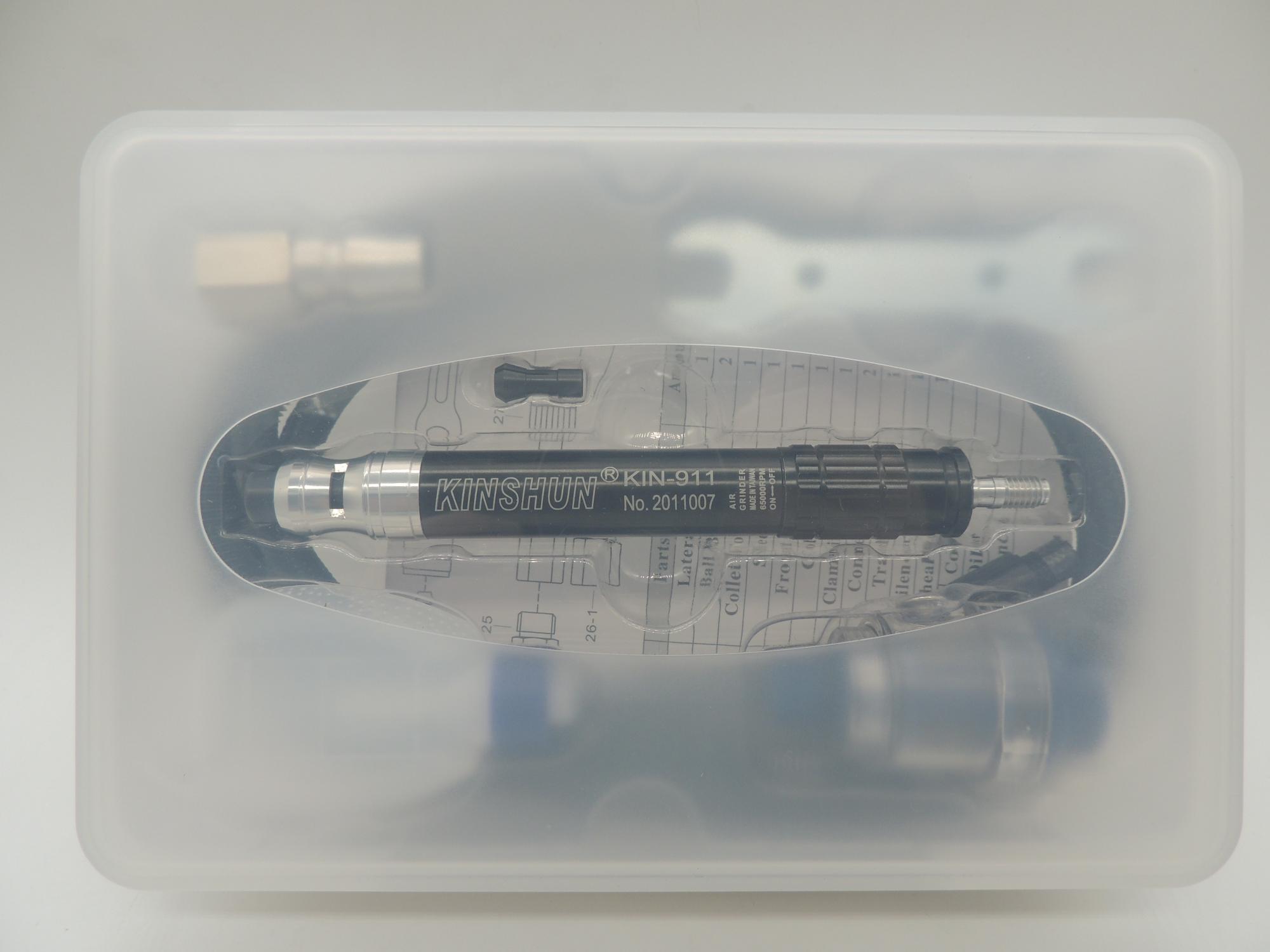

KIN-911-Package
