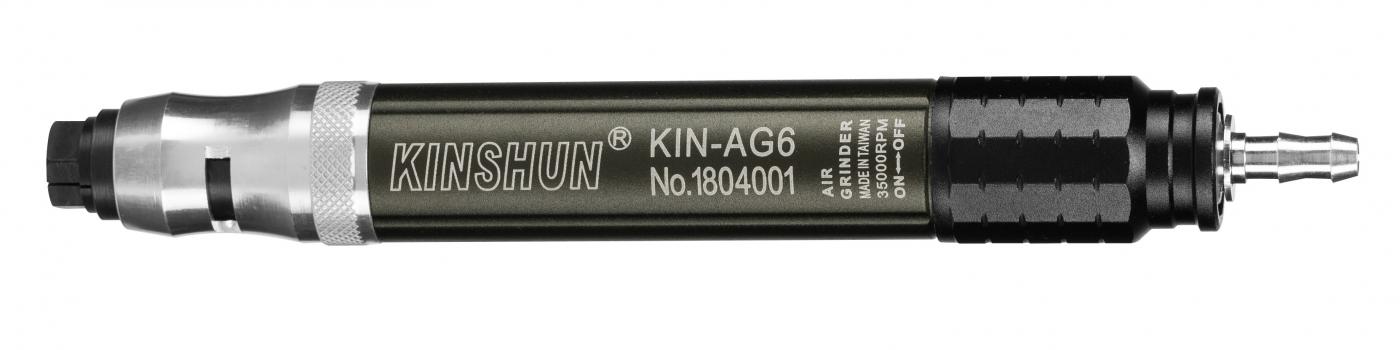

KIN-AG6
KIN-AG6
3+6MM Dual use
- Free Speed: 35000 rpm
- Vibration Value:1.0m/S²
- Collet:3mm+6MM – (3.175mm+6.35mm)Replacement
- Sound Pressure:85dba
- Net Weight(Micro Air Grinder +Tube ): 0.21Kg
- Net weight of machine body: 110g
- Without muffler tube:90dba
- Packaging (+Accessory Kit Weight )(1pcs):0.453kg
- Length:150mm
- Tool Dimension:19.0mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption: 0.12 m3/min (4CFM-113L/min)
- Air Inlet:1/4”
- Exhaust System:Rear
- Hose Length:1300mm(Tube inner diameter 5mm)
- Rotational Concentricity:0.01-0.03m/m
- Switch:Switch fine-tuning. Roll Type Throttle.
- Packing:25 pcs/1.4cu-ft/G.W.:12kgs /N.W:11.3kgs(42CM*35 CM*27 CM)

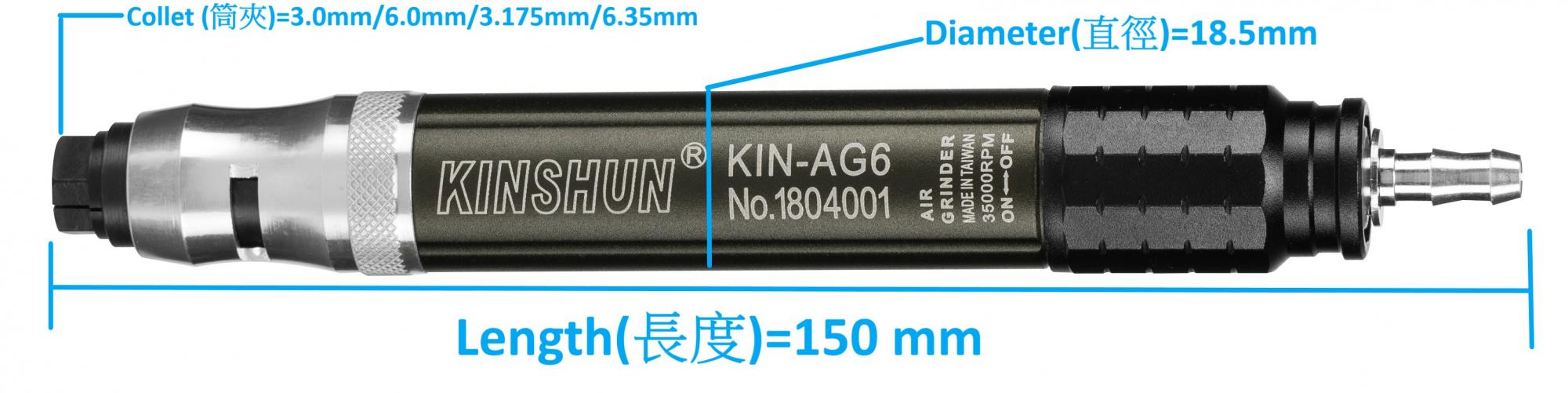

KIN-AG6-Size marking chart
KIN-AG6 STANDARD ACCESSORY
- Spanner(11x10mm) x1pcs
- Spanner(Ltype11x10mm) x1pcs
- Oil Can x1pcs
- Super Plug x1pcs
- Oil Injector x1pcs
- Collet(6mm) x1pcs
KIN-AG6 Material
- Shell:Aluminum alloy- Selectable color
- Cylinder:SCM420 Alloy steel
- Rotor:Stainless steel
- Blade:3pcs
- Bearing:3pcs
- Bearing housing:Copper
- Splitter:Aluminum alloy
- Collet:Steel
KIN-AG6 Features
- Increase the rotor. Increase the blade. Increase the cylinder. Dual use.
- Durable. Strong torque Dual use.
- Industrial grade/heavy grinding.
- Heavy Duty 3mm Pencil Grinder.
- Ideal for machining dies, molds or other restricted grinding applications.
- High quality bearings efficiently increase the lifetime.

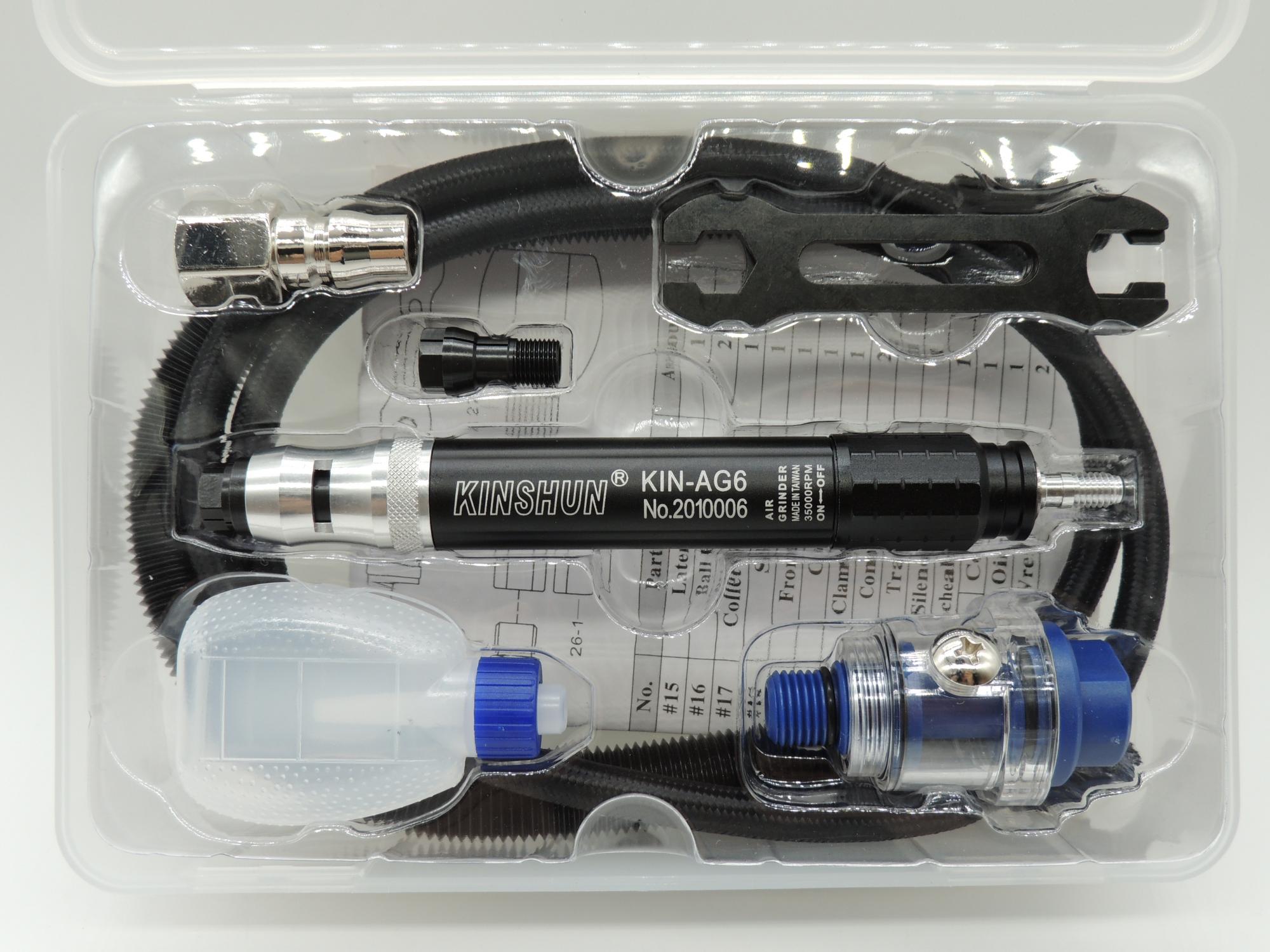

KIN-AG6-Package
