KIN-960A
KIN-960A
White iron curve type high torque super durable type
- Free Speed: 65000 rpm
- Net weight of machine body: 106g
- Collet:3mm~(1/8”) ~(2.38mm)-Replacement
- Vibration Value:1.0m/S²
- Net Weight(Micro Air Grinder +Tube ): 0.29Kg
- Sound Pressure:87dba
- Packaging (+Accessory Kit Weight )(1pcs):0.438kg
- Without muffler tube:92dba
- Length: 140mm
- Tool Dimension:18.5mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption: 0.12 m3/min (4CFM-113L/min)
- Air Inlet:1/4”
- Exhaust System: Before .Rear
- Hose Length:1300mm. (Tube inner diameter 5mm)
- Rotational Concentricity:0.01-0.03m/m
- Switch: Switch fine-tuning. Roll Type Throttle.
- Packing:25 pcs/1.4cu-ft/G.W.:11.6kgs / N.W:11kgs (42CM*35 CM*27CM)

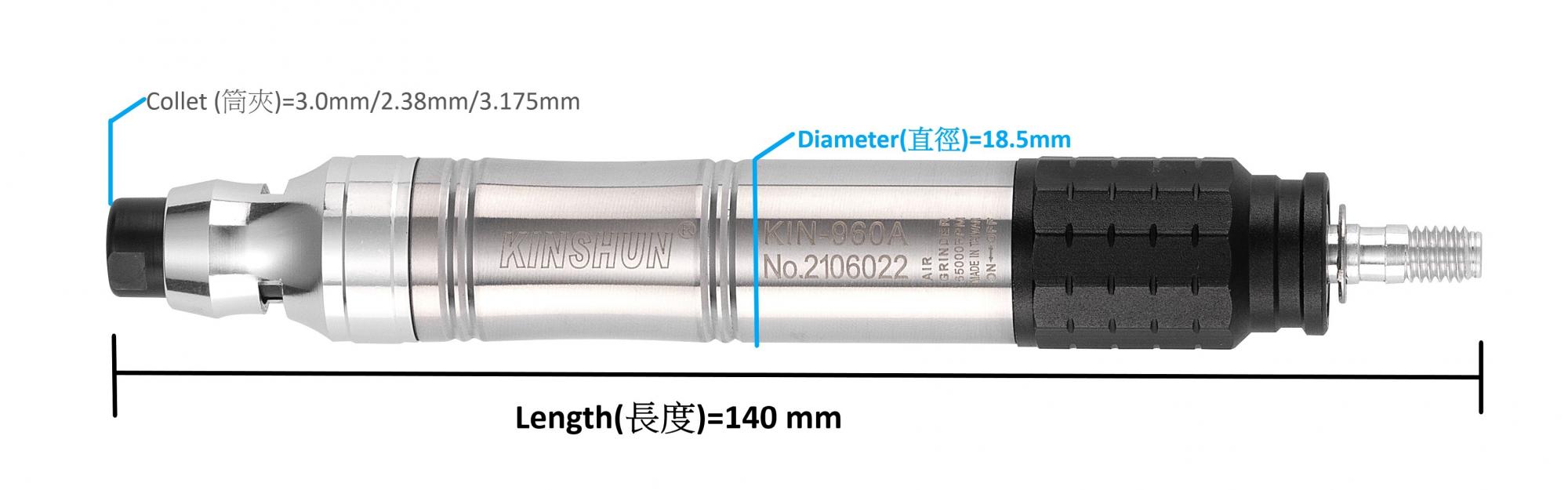

KIN-960A-Size marking chart
KIN-960A STANDARD ACCESSORY
- Spanner (9x9mm)x1pcs
- Spanner (Ltype9x9mm)x1pcs
- Oil Can x1pcs
- Super Plug x1pcs
- Oil Injector x1pcs
- Collet x1pcs
KIN-960A Material
- Shell: Stainless steel + Aluminum
- Cylinder: SCM420 Alloy steel
- Rotor: Stainless steel
- Blade: 3pcs
- Bearing:3pcs
- Bearing Housing:Copper
- Splitter:Aluminum
- Collet:Steel
KIN-960A Features
- Increase the rotor. Increase the blade.
- Increase the cylinder.
- Durable. Strong torque.
- Industrial grade/heavy grinding.
- Heavy duty 3mm pencil grinder.
- Ideal for machining dies, molds or other restricted grinding applications.
- High quality bearings efficiently increase the lifetime.
- Low vibration helps to reduce noise and to ease the control.

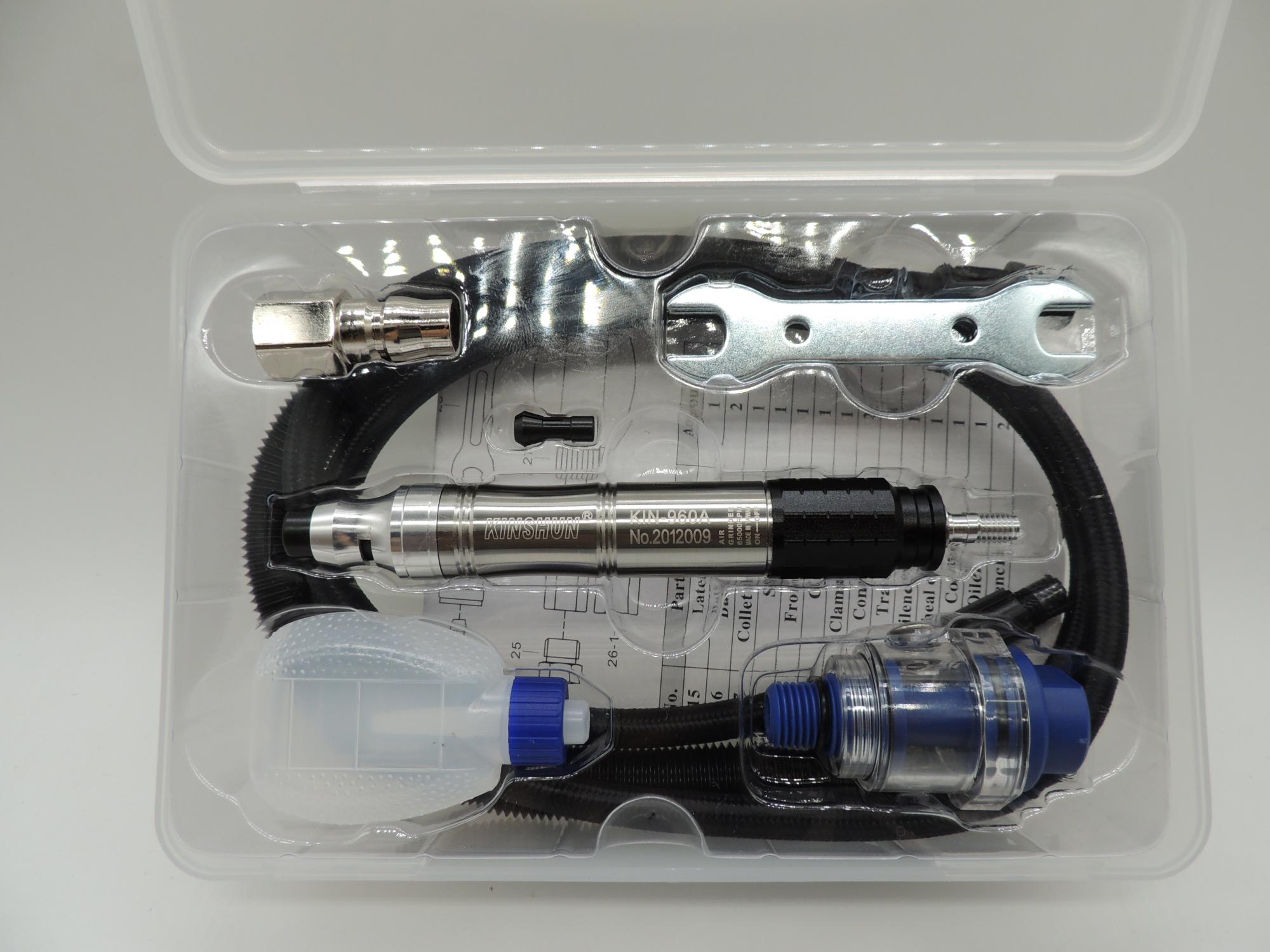

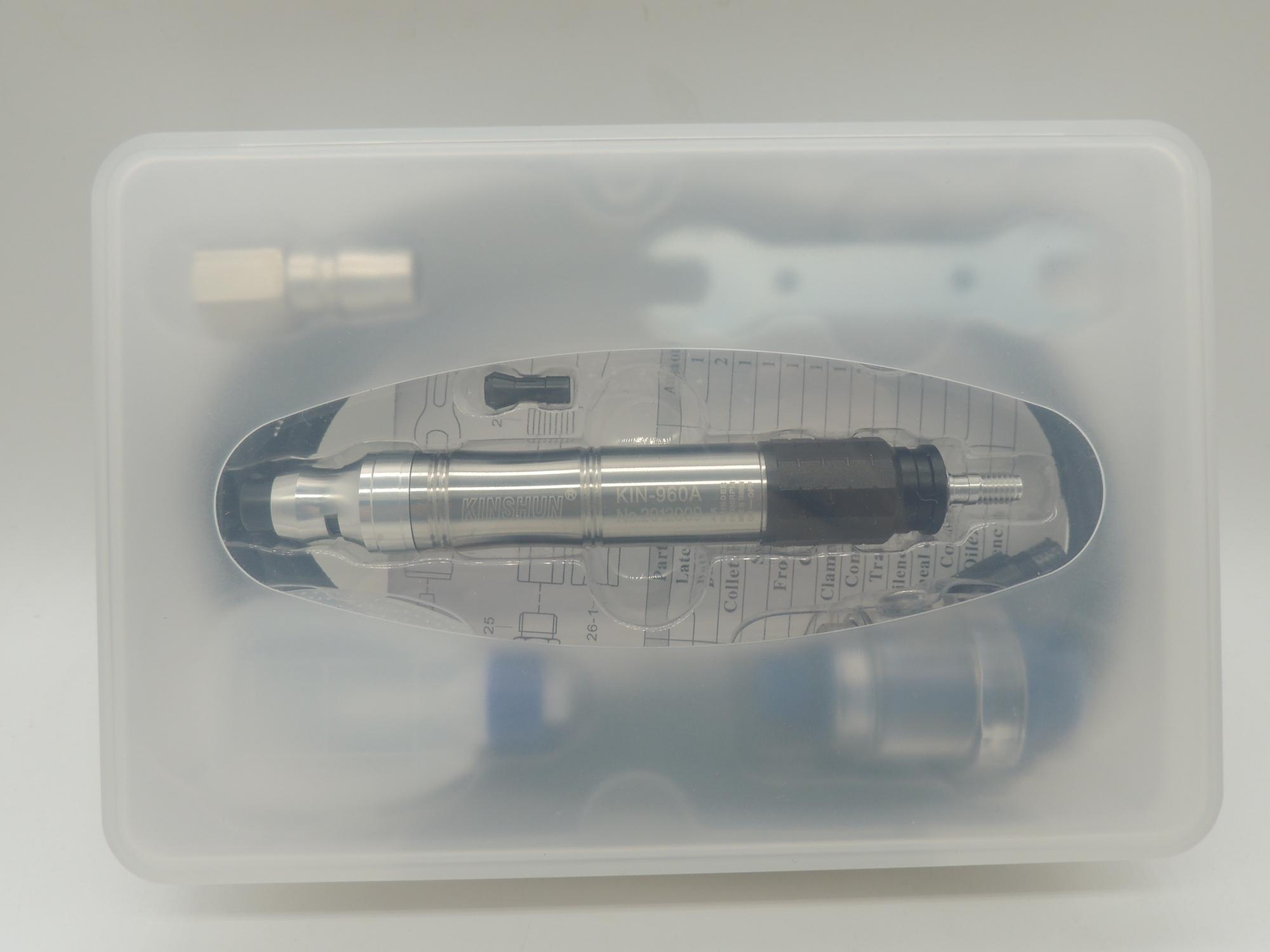

KIN-960A-Package
KIN-960A影片連結
