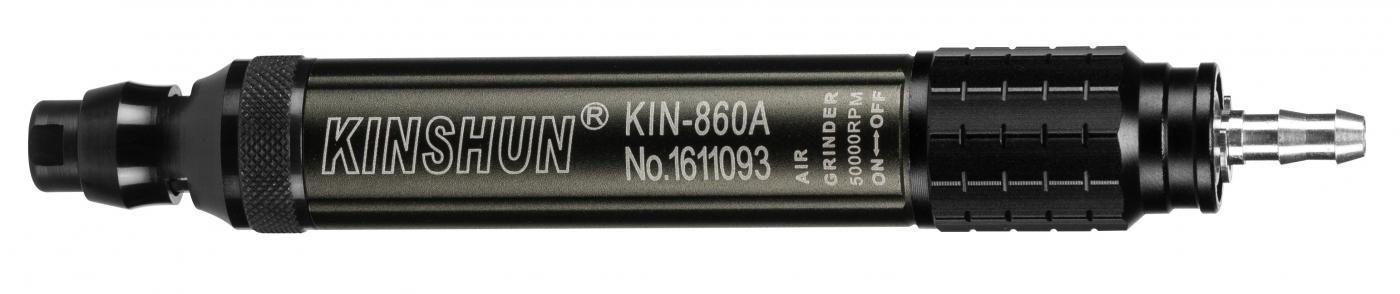

KIN-860A
KIN-860A
Features: High torque, strong cutting force, strong force
- Free Speed: 50000 rpm
- Vibration value: 1.0m/S²
- Net weight of machine body: 98.5g
- Sound Pressure:86dba
- Collet:3mm(1/8”) ~(2.38mm)– Replacement
- Without muffler tube:89dba
- Net Weight(Micro Air Grinder +Tube ): 0.2Kg
- Packaging (+Accessory Kit Weight )(1pcs):0.43kg
- Length:: 140mm
- Tool Dimension:19.0mm
- Air Pressure:5-7kg/ 6.32 kgf/cm2* (90PSI)
- Air Consumption:0.12 m3/min (4CFM-113L/min)
- Air Inlet:1/4”
- Exhaust System: Rear
- Hose Length:1300mm(Inner diameter 5mm)
- Rotational Concentricity:0.01-0.03m/m
- Switch: Switch fine-tuning. Roll Type Throttle.
- Packing:25 pcs/1.4cu-ft/G.W.:11.5kgs /N.W:10.7kgs (42 CM*35 CM*27 CM)

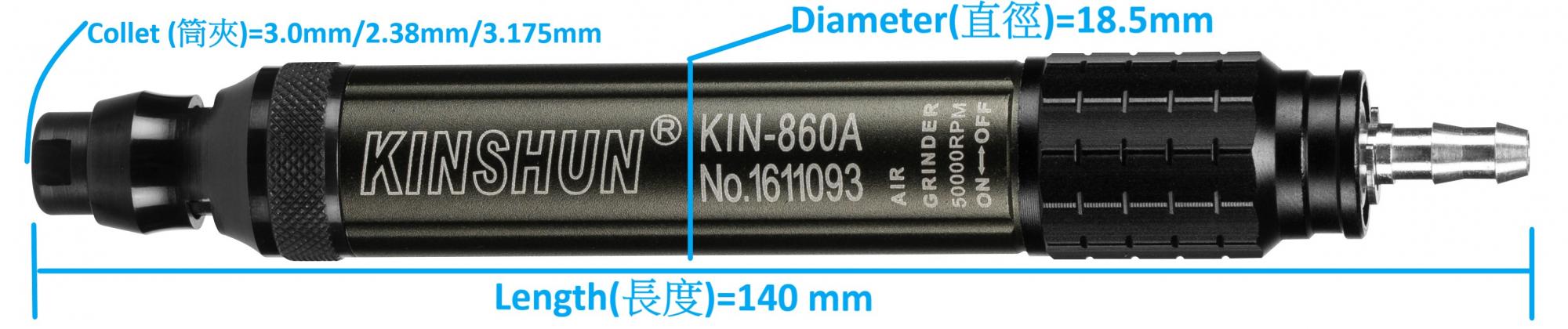

KIN-860A-Size marking chart

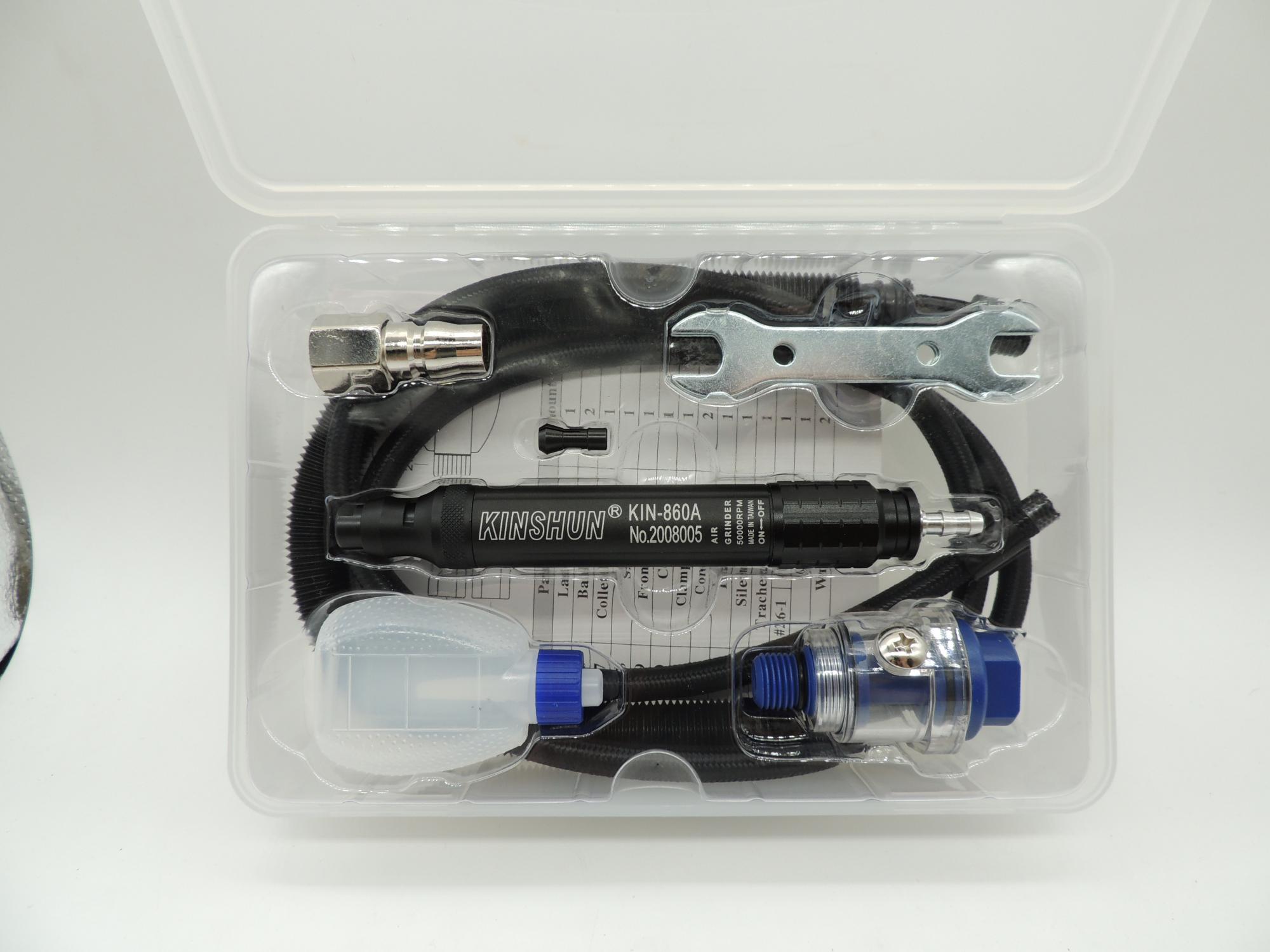

KIN-860A STANDARD ACCESSORY
- Spanner (9x9mm)x1pcs
- Spanner (Ltype9x9mm)x1pcs
- Oil Can x1pcs
- Super Plug x1pcs
- Oil Injector x1pcs
- Collet x1pcs
KIN-860A Material
- Shell: Aluminum alloy -Selectable color
- Cylinder: SCM420 Alloy steel
- Rotor: Stainless steel
- Blade:3pcs
- Bearing:3pcs
- Bearing Housing:Copper
- Splitter:Aluminum alloy
- Collet:Steel
KIN-860A Features
- Increase the rotor. Increase the blade.
- Increase the cylinder.
- Durable. Strong torque.
- Industrial grade/heavy grinding.
- Heavy duty 3mm pencil grinder.
- Ideal for machining dies, molds or other restricted grinding applications.
- High quality bearings efficiently increase the lifetime.
- Low vibration helps to reduce noise and to ease the control.

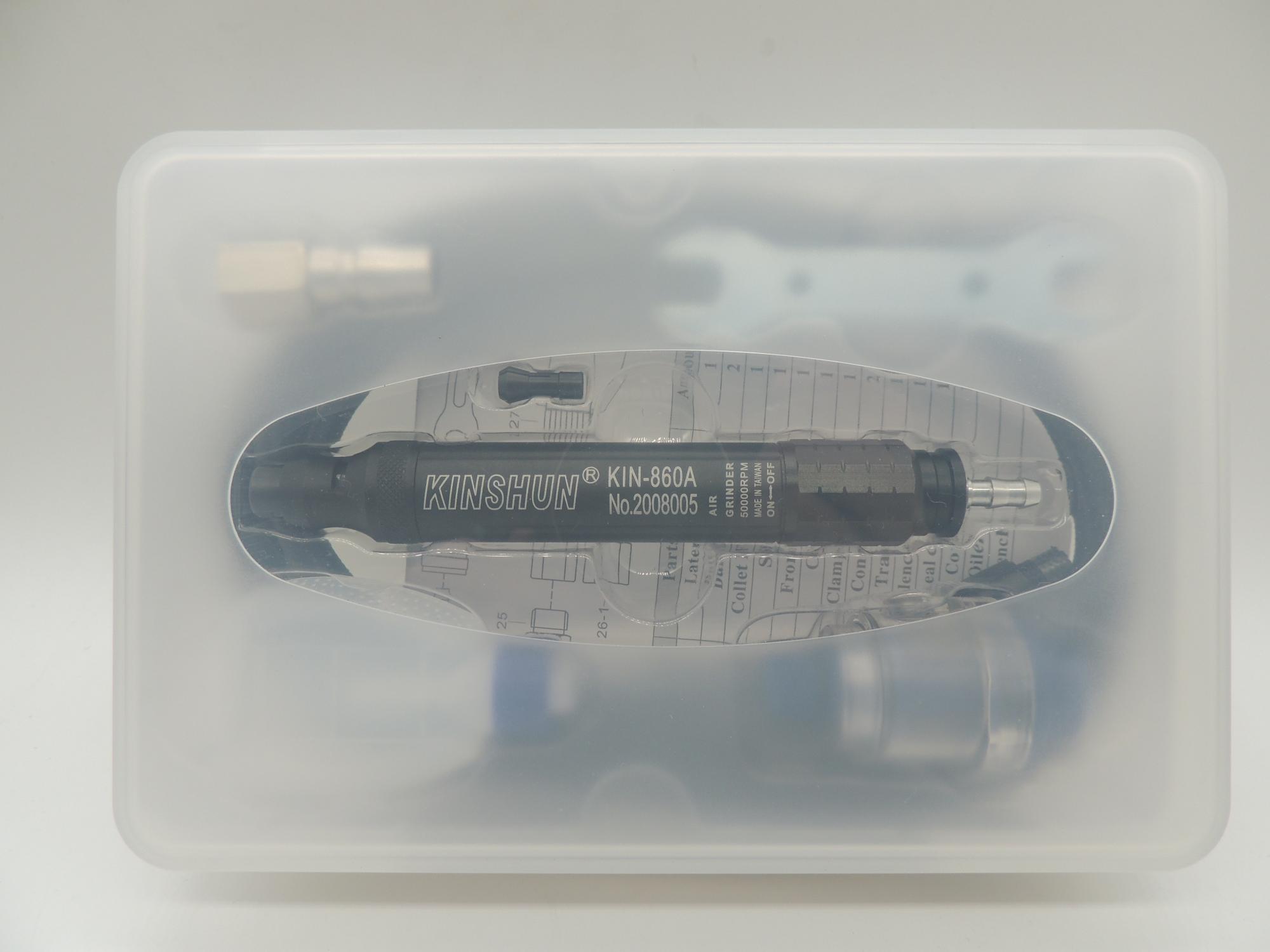

KIN-860A-package
