TLL-10 New Structure Multi-Bearing Ultrasonic Reciprocating Grinding Machine (Enhanced Edition)
*Parts are entirely machined in-house on a Japanese-made STAR (Automatic Lathe) milling machine, ensuring both component and assembly accuracy! (Industry-leading quality)
TLL-10 Features: This machine utilizes a new mold assembly with four high-quality bearings to reinforce the axis, ensuring greater stability and durability during high-speed reciprocating motion, ensuring optimal user efficiency.
For medium grinding (for reciprocating grinding)
Reciprocating stroke: 1.0mm-↹
Speed: 30,000 rpm
Chuck size: ○ = 3mm (1/8"), □ = 0.5-3mm x 4-10mm
Machine + tube weight: 0.285kg
Machine net weight: 195g
Weight with accessories (one unit): 0.470kg
Machine length: 205mm
Machine outer diameter: 30mm
Operating pressure: 5-7kg/6.32 kgf/cm²* (90PSI)
Air consumption: 0.04 m³/min (1.41 CFM-40 L/min)
Air inlet size: 1/4"
Exhaust method: Front and rear exhaust
Inlet pipe length (diameter): 1300mm (Inner diameter 5mm)
Switch: Fine-adjustable, roller-type throttle valve
Packing Details: 25 units / 1.4 cu-ft / G.W.: 12.5 kg / N.G.: 11.8 kg (44.5 cm x 42 cm x 27 cm)
Reciprocating stroke: 1.0mm-↹
Speed: 30,000 rpm
Chuck size: ○ = 3mm (1/8"), □ = 0.5-3mm x 4-10mm
Machine + tube weight: 0.285kg
Machine net weight: 195g
Weight with accessories (one unit): 0.470kg
Machine length: 205mm
Machine outer diameter: 30mm
Operating pressure: 5-7kg/6.32 kgf/cm²* (90PSI)
Air consumption: 0.04 m³/min (1.41 CFM-40 L/min)
Air inlet size: 1/4"
Exhaust method: Front and rear exhaust
Inlet pipe length (diameter): 1300mm (Inner diameter 5mm)
Switch: Fine-adjustable, roller-type throttle valve
Packing Details: 25 units / 1.4 cu-ft / G.W.: 12.5 kg / N.G.: 11.8 kg (44.5 cm x 42 cm x 27 cm)

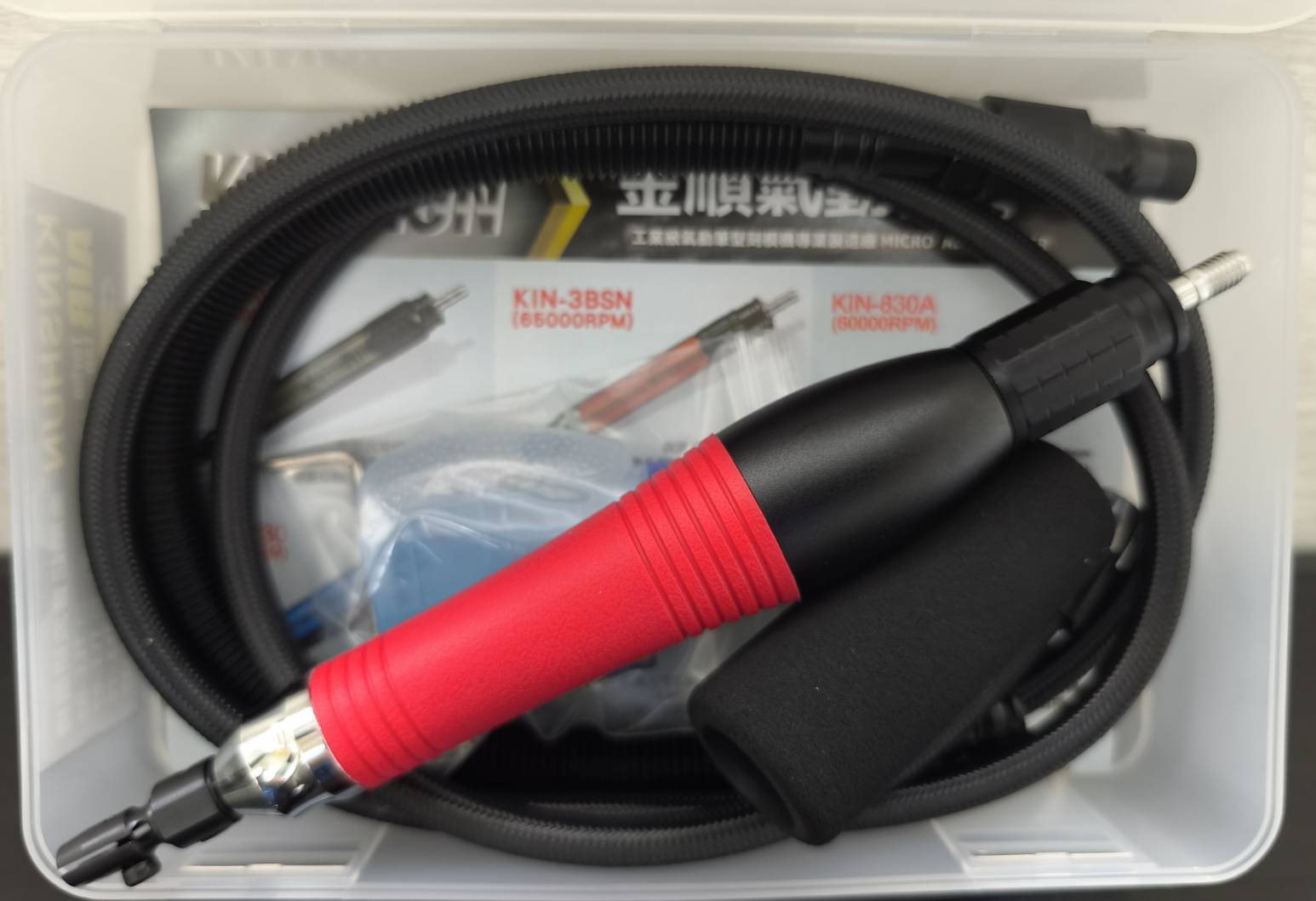

TLL-10 Standard Accessories
L-shaped hexagonal wrench 2.5mm x 1 pc
Spindle x 1 pc
Square chuck x 1 pc
TLL-10 Configuration
Casing: Zinc, aluminum, plastic alloy
Turbine gear: Copper
Bearings: 4 pcs
Linear bearing: 1 pc
Spindle: 1 pc
TLL-10 Features
Excellent grinding performance. Spindle is ground and heat-treated to eliminate insufficient travel caused by spindle retraction during grinding, improving grinding efficiency.
TLL-10 blank plastic box ODM packaging available
