TLL-12 New Structure Multi-Bearing Ultrasonic Reciprocating Grinding Machine (Enhanced Edition)
*Parts are entirely machined in-house on a Japanese-made STAR (Automatic Lathe) milling machine, ensuring both component and assembly accuracy! (Industry-leading quality)
TLL-12 Features:
This machine utilizes a new mold assembly with four high-quality bearings to reinforce the axis, ensuring greater stability and durability during high-speed reciprocating motion. This ensures optimal user efficiency.
For coarse grinding (for reciprocating grinding only)
Reciprocating stroke: 1.2mm-↹
Speed: 25,000 rpm
Chuck size: ○ = 3mm (1/8"), □ = 0.5-3mm x 4-10mm
Machine + tube weight: 0.285kg
Machine net weight: 195g
Weight with accessories (one unit): 0.470kg
Machine length: 205mm
Machine outer diameter: 30mm
Operating pressure: 5-7kg/6.32 kgf/cm²* (90PSI)
Air consumption: 0.04 m³/min (1.41 CFM-40 L/min)
Air inlet size: 1/4"
Exhaust method: Front and rear exhaust
Inlet tube length (diameter): 1300mm (Inner diameter 5mm)
Switch: Fine-adjustable, roller-type throttle valve
Packing Details: 25 units / 1.4 cu-ft / G.W.: 12.5 kg / N.G.: 11.8 kg (44.5 cm x 42 cm x 27 cm)
Reciprocating stroke: 1.2mm-↹
Speed: 25,000 rpm
Chuck size: ○ = 3mm (1/8"), □ = 0.5-3mm x 4-10mm
Machine + tube weight: 0.285kg
Machine net weight: 195g
Weight with accessories (one unit): 0.470kg
Machine length: 205mm
Machine outer diameter: 30mm
Operating pressure: 5-7kg/6.32 kgf/cm²* (90PSI)
Air consumption: 0.04 m³/min (1.41 CFM-40 L/min)
Air inlet size: 1/4"
Exhaust method: Front and rear exhaust
Inlet tube length (diameter): 1300mm (Inner diameter 5mm)
Switch: Fine-adjustable, roller-type throttle valve
Packing Details: 25 units / 1.4 cu-ft / G.W.: 12.5 kg / N.G.: 11.8 kg (44.5 cm x 42 cm x 27 cm)

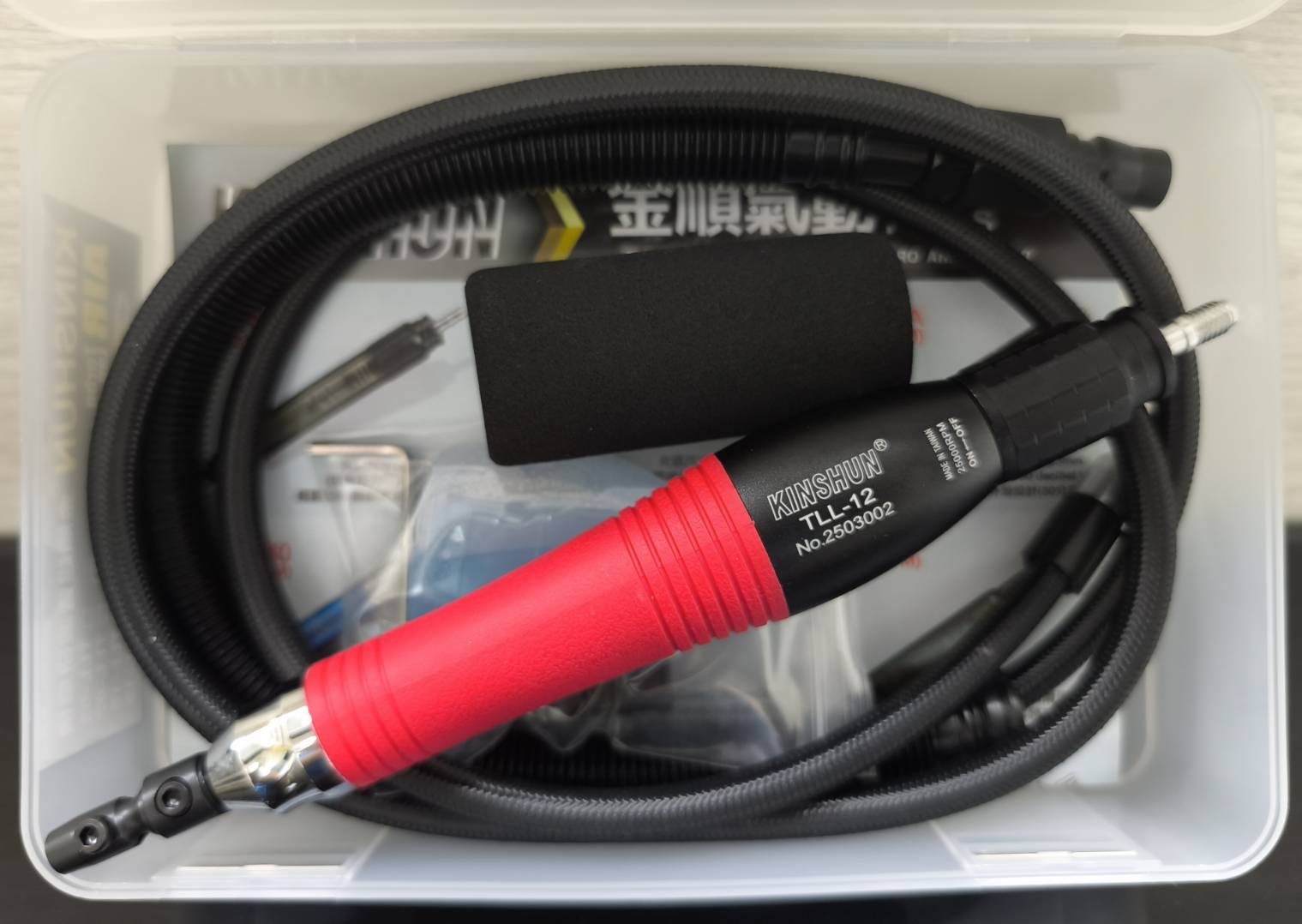

TLL-12 Standard Accessories
L-shaped Hexagonal Wrench 2.5mm x 1 pc
Spindle x 1 pc
Square Collet x 1 pc
TLL-12 Configuration
Casing: Zinc, Aluminum, Plastic Alloy
Turbine Gear: Copper
Bearings: 4 pcs
Linear Bearing: 1 pc
Spindle: 1 pc
TLL-12 Features
Excellent Grinding Power
Spindle Grinding and Heat Treatment Processing Eliminate Spindle Retraction and Insufficient Stroke During Grinding, Improving Grinding Efficiency

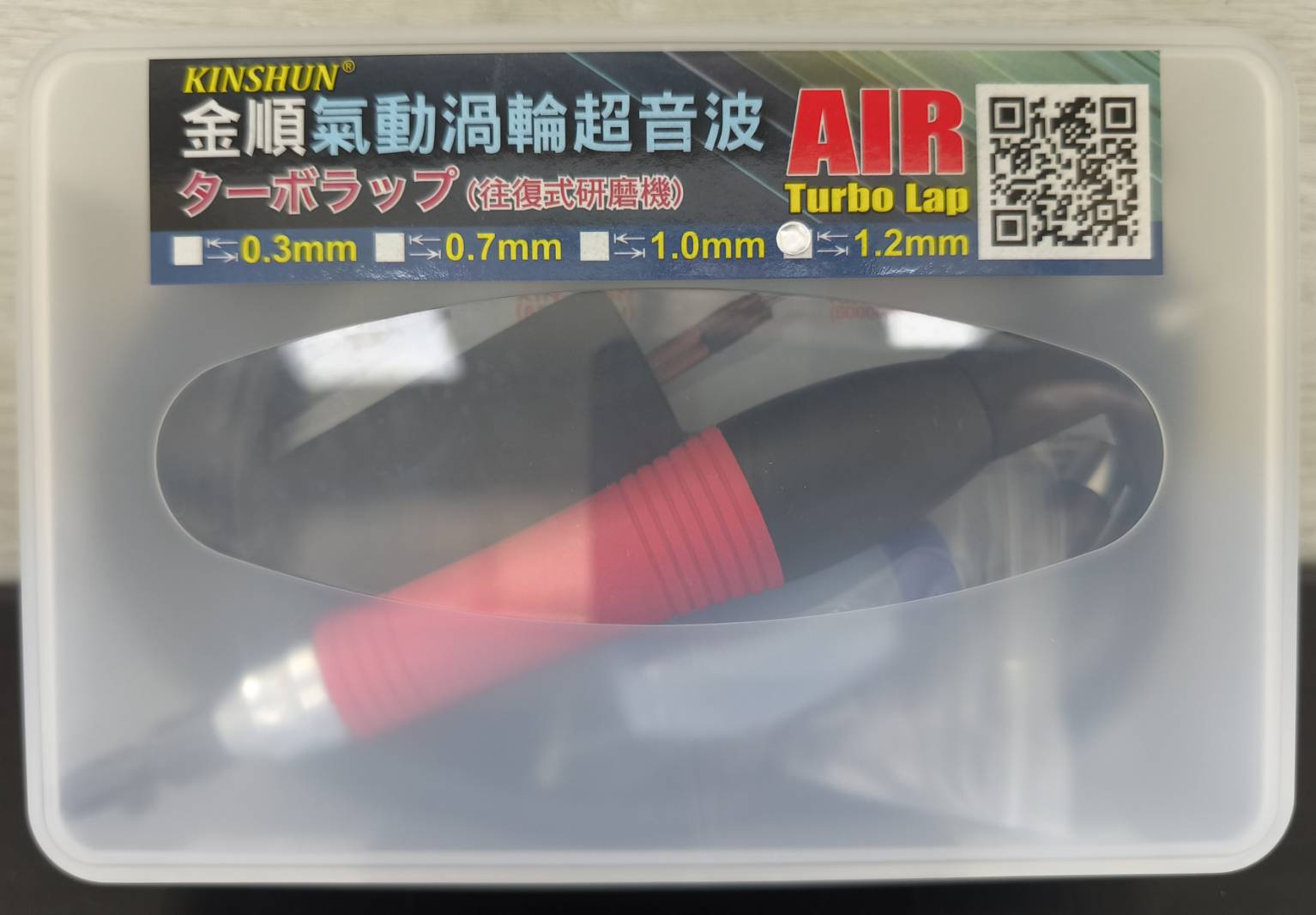

TLL-12 Blank Plastic Box ODM Packag
L-shaped Hexagonal Wrench 2.5mm x 1 pc
Spindle x 1 pc
Square Collet x 1 pc
TLL-12 Configuration
Casing: Zinc, Aluminum, Plastic Alloy
Turbine Gear: Copper
Bearings: 4 pcs
Linear Bearing: 1 pc
Spindle: 1 pc
TLL-12 Features
Excellent Grinding Power
Spindle Grinding and Heat Treatment Processing Eliminate Spindle Retraction and Insufficient Stroke During Grinding, Improving Grinding Efficiency
TLL-12 Blank Plastic Box ODM Packag
