Speed: 65,000 rpm
Vibration: 1.0 m/s²
Chuck Size: 3 mm (4.0 mm)
Weight (unit): 0.16 kg
Decibel Level: 88 dBa (94 dBa without muffler)
Net Weight: 64.4 g
Weight (per unit): 0.37 kg
Main Length: 140 mm
Main Outer Diameter: 15.5 mm
Operating Pressure: 5-7 kg/6.32 kgf/cm²* (90 PSI)
Air Consumption: 0.12 m³/min (4 CFM-113 L/min)
Air Inlet Size: 1/4"
Inlet Tube Length (Diameter): 1300 mm (Inner Diameter: 5 mm)
Swivel Concentricity: 0.01-0.03 m/m
Switch: Fine-tune, roller-type throttle valve
Packaging Details: 25 units/1.4 cu-ft/G.W.:10kgs/N.W:9.3kgs (42CM*35CM*27CM

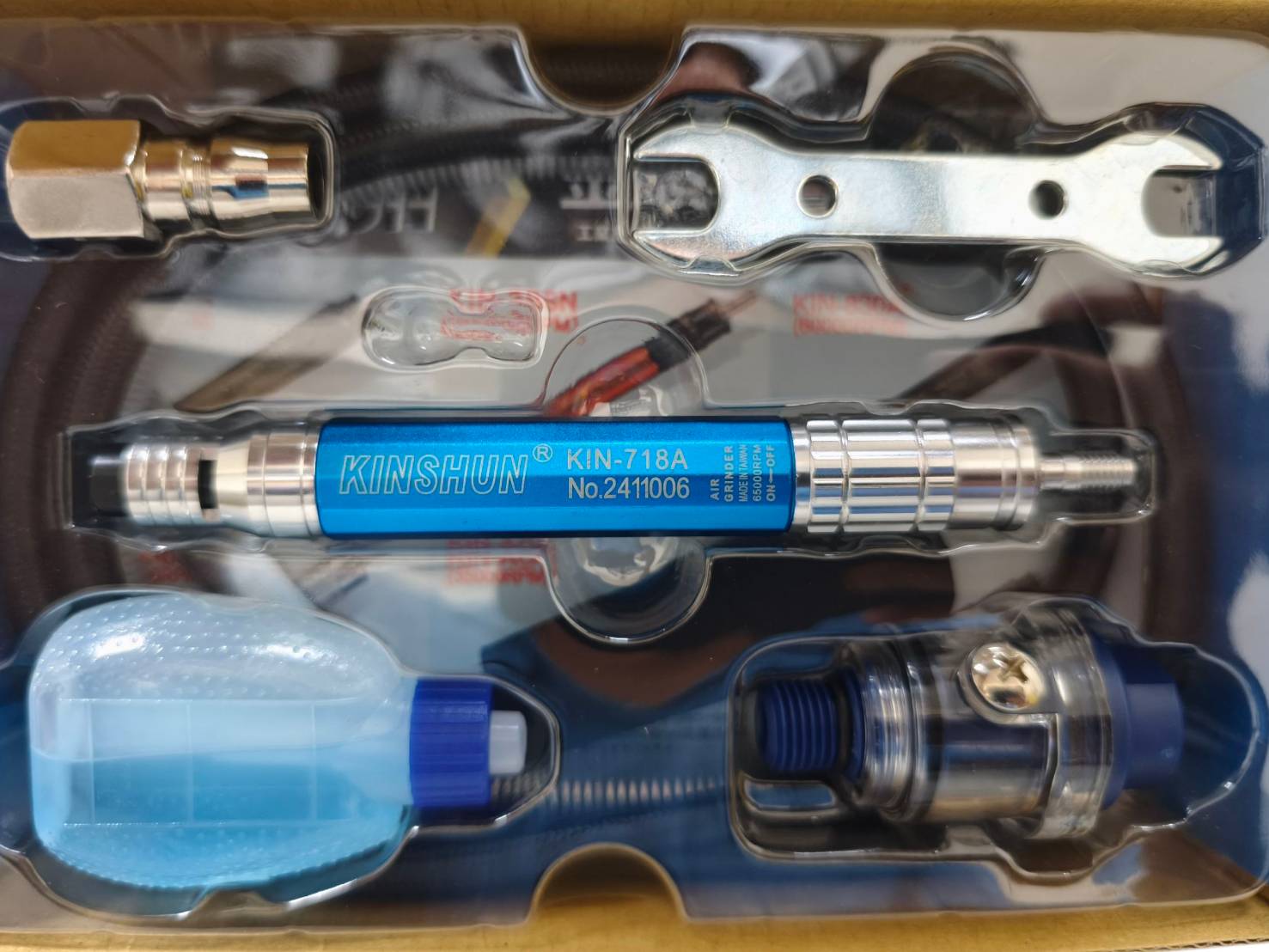

KIN-718A Standard Accessories

Wrench (9x9mm) x 1 pc
L-shaped wrench (9x9mm) x 1 pc
Oiler x 1 pc
Quick connector x 1 pc
Lubricator x 1 pc
Non-slip sponge cover x 1 pc

KIN-718 Configuration

Casing: Aluminum alloy anode
Milling cylinder
Rotor: Stainless steel
Veils: 3 pcs (extended)
Bearings: 3 pcs
Breathing pads (diverters): Aluminum alloy
Bearing seat: Copper
Chuck: Single chuck - Concentricity 0.01mm

KIN-718A Features

Rotational concentricity 0.01mm, suitable for ultra-fine precision machining
Durable, medium torque, accurate
High-quality bearings effectively extend service life
Low vibration helps reduce noise and ease control
Ideal for machining molds, dies, or other small grinding necessities
Packaging:
